Ibanez BTB605MLM PWM Workshop Series Multiscale Bass Guitar 5 Strings with Gig Bag

Ibanez BTB605MLM PWM Workshop Series Multiscale Bass Guitar 5 Strings with Gig Bag

SPECS
neck type BTB5 for Multi Scale 5pc Maple/Walnut w/Graphite reinforcement rods Neck-through
top/back/body Okoume wing body
fretboard Flamed Maple fretboard Abalone dot inlay
fret Medium Stainless Steel frets
number of frets 24 (+ zero fret)
bridge MR5S bridge
string space 19mm
neck pickup T1 neck pickup Passive
bridge pickup T1 bridge pickup Passive
equalizer Ibanez Custom Electronics 3-band EQ w/EQ bypass switch (passive tone control on treble pot), 3-way Mid frequency switch
factory tuning 1G,2D,3A,4E,5B
strings D’Addario® NYXL45130SL
string gauge .045/.065/.080/.100/.130
hardware color Gold

NECK DIMENSIONS
Scale : 889mm/35″ – 864mm/34″
a : Width 47mm at NUT
b : Width 75mm at 24F
c : Thickness 20mm at 1F
d : Thickness 22mm at 12F
Radius : 400mmR

CONTROLS
BTB605’s control diagram
With the bass held in the playing position, there are three small knobs located towards the lower edge of the body. Directionally, from the lower bout towards the neck these knobs control treble boost/cut, mid boost/cut, and bass boost/cut knob. Above these are two larger knobs closer to the bridge. Of these, the knob closest to the end of the body is the pickup balance, and the knob located towards the neck is the volume knob. There are two switches on this bass. The switch closest to the lower edge of the body is a 3-way mid frequency switch. When the switch is in neck position, mid boost peak is at 250Hz. When the switch is in center position, mid boost peak is at 450Hz. When the switch is in bridge position, mid boost peak is at 800Hz. The other switch closer to the middle of the bass is the EQ bypass switch. When the switch is in neck position, the EQ is off. When the switch is in bridge position, EQ is on. When EQ is off, the treble knob works as a passive tone control knob.

FREQUENCY RESPONSE
BTB605’s EQ curve diagram
The bass boost/cut frequency curve has a peak at 20 Hz, the variable width becomes smaller toward the high range, and the variable width becomes zero at about 1000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve draws a mountain-shaped curve with a peak at around 10,000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±15 dB. The mid-boost/cut frequency curve creates a bell-shaped curve that peaks at a specific frequency, and the variable range becomes zero near 20 Hz and around 10,000 Hz. The frequency peak can be switched to 700, 450 and 250 Hz. The variable range of the peak frequency is approximately ±15 dB.

OTHER FEATURES
Recommended Case MRB350C
Recommended Bag IBB540-BK

Features

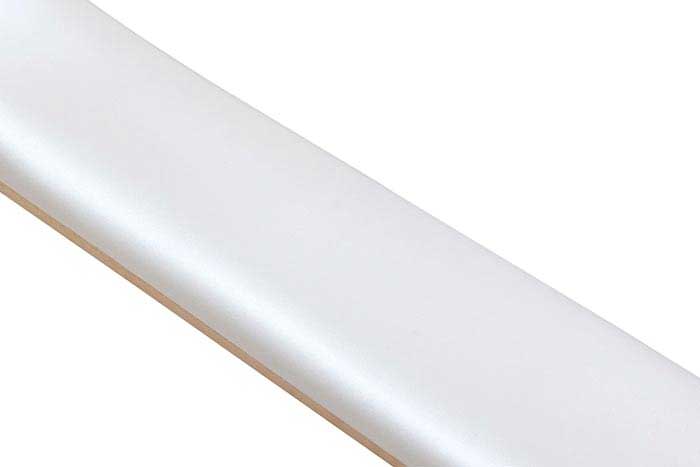

5pc Maple/Walnut neck with Graphite reinforcement rods
The 5pc Maple/Walnut neck provides tonal clarity and superior attack.The Graphite reinforcement rods provides massive sustain and excellent stability.

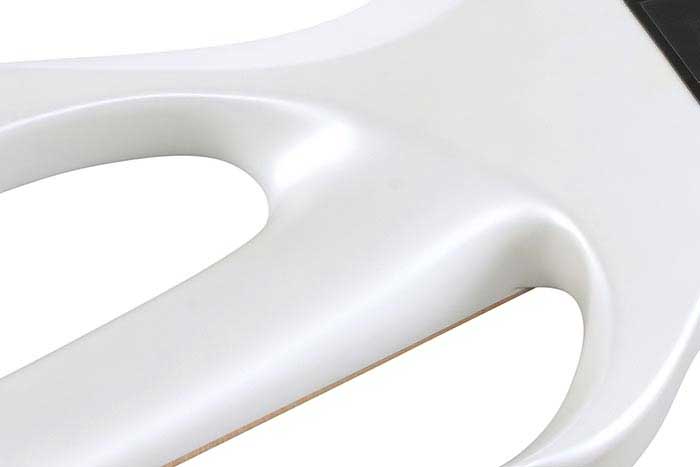

Neck-through construction
The neck-through construction contributes to massive sustain and smooth access to high fretboard positions.

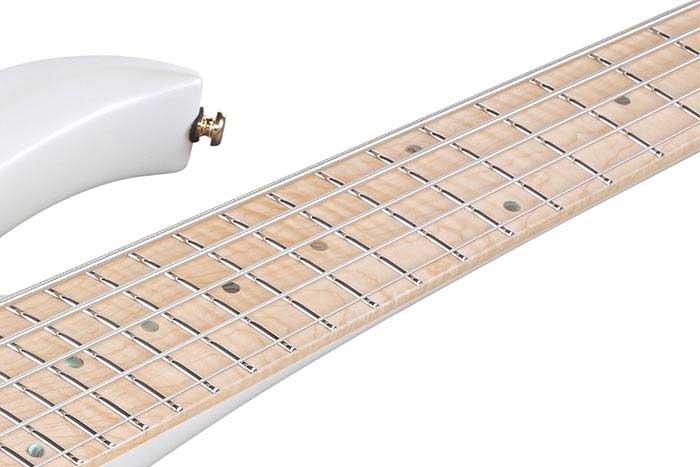

Flamed Maple fretboard
The beautiful Flamed Maple fretboard imbues this model with an exotic appearance.

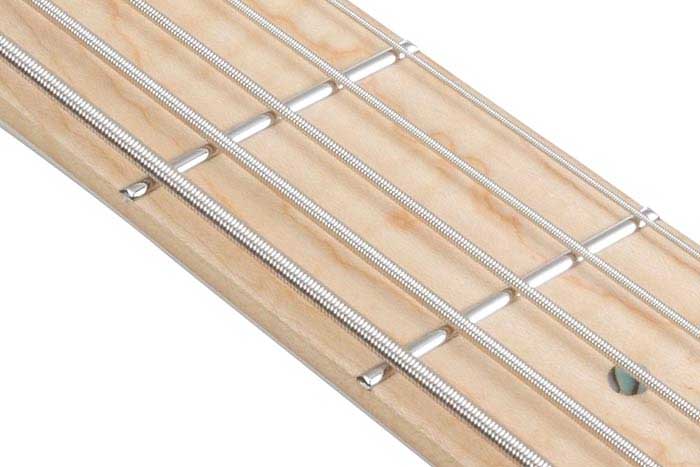

Medium Stainless Steel frets
The Stainless Steel frets are durable and long-lasting.

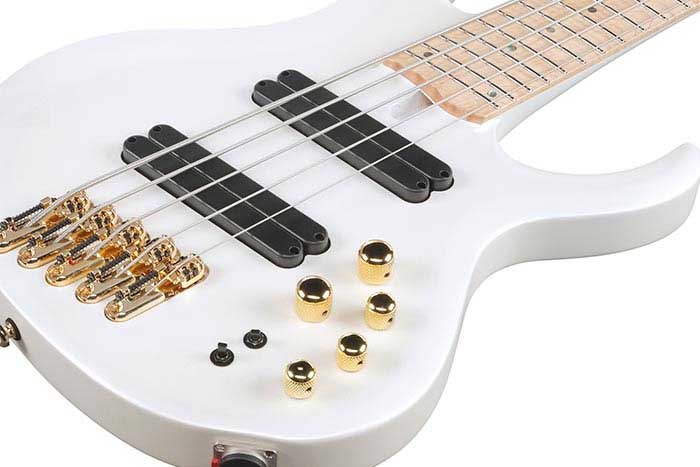

Okoume wing body
The Okoume wing body provides a bright and solid sound.

T1 pickups
The T1 pickup is a humbucker featuring two separate, individually mounted coils that provides tight bass response, punchy mid-range, and clear high-end. It offers flexible voicing suitable for various genres, and the height of each coil can be set individually for highly nuanced adjustments to the tone. On top of its great sound, the physical design features rounded edges for enhanced ergonomic comfort when using the pickup as a thumb rest. Moreover, the individually mounted coils allow them to be positioned slightly offset from one another. This makes it so the surface of the pickup where the player rests their thumb is directly parallel with the strings, which is not typical with most multi scale basses. This design greatly enhances the comfort and playability of the instrument.

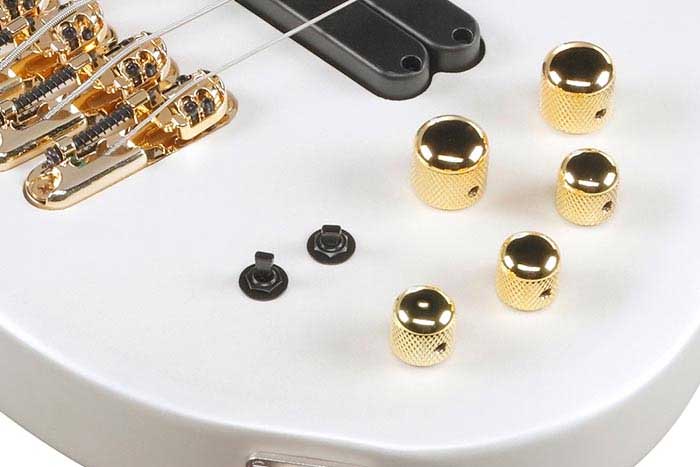

Ibanez Custom Electronics 3-band EQ w/Mid frequency switch
Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.

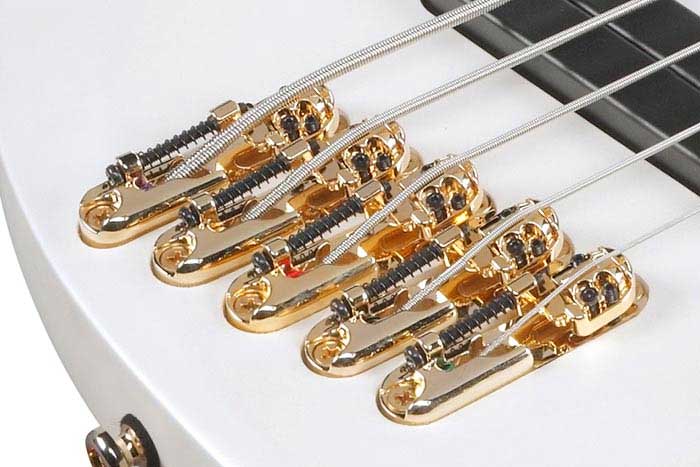

MR5S bridge
The MR5S bridge has adjustable saddles for variable string spacing by +/1.5mm, answering every bassist’s specific string spacing needs.

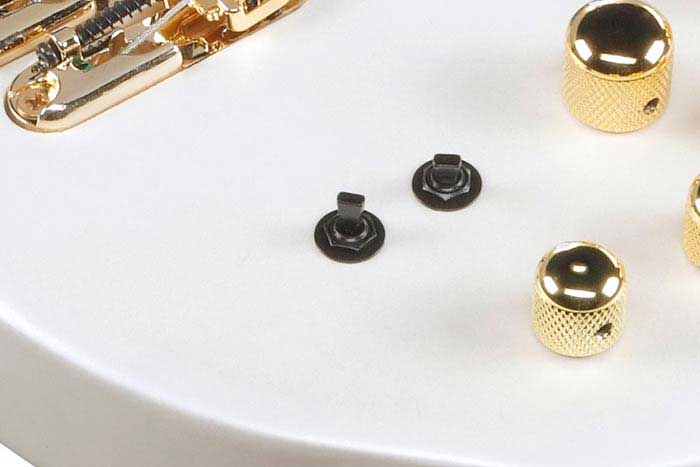

3-way Mid frequency switch
The 3-way Mid frequency switch allow players to change the mid-tone between 250, 450, and 700 Hz.

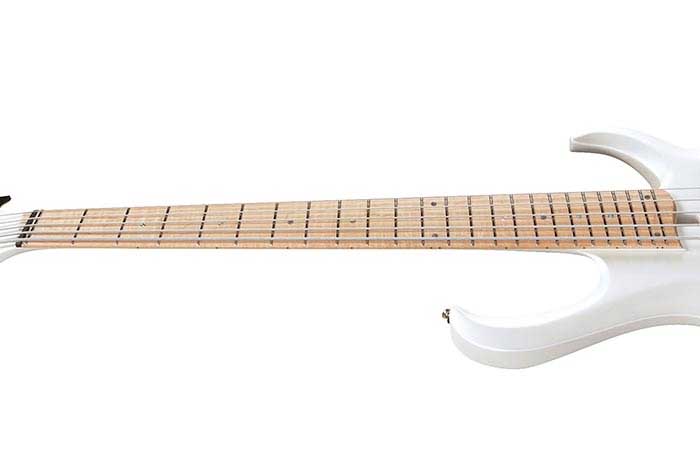

35-34 inch multi scale
35-34 inch multi scale construction allows the higher strings to be played more easily, while still having adequate tension for lower strings.
