Fractal FM3 Mark II Turbo Amplifier Modeler Multi FX Guitar Processor FAS-037-D
FM3 Mk II Turbo Amp Modeler-FX Processor
Cygnus X2 Amp Modeling, UltraRes & DynaCab Speaker Sims, and an incredible collection of Stompbox and Studio Effects
The FM3 is a compact all-in-one processor for guitar, bass, and other instruments. It features Fractal Audio’s industry-leading Cygnus X2 amp modeling, UltraRes and DynaCab speaker cab simulation, plus an incredible collection of legendary stompbox and studio effects, all based on our award-winning flagship the Axe-Fx III. The unit is also a powerful foot controller with all of the programmable features of our larger FC controllers, plus a 4×4 USB audio interface — and more — all in a compact, rugged, floor unit designed for the studio or stage.
The new FM3 Mark II Turbo was released in July 2023. This advanced and compact floor unit builds on the success of the original FM3, now boasting over 10% more DSP power and larger, easier-to-read footswitch displays. The new Turbo DSP allows the creation of more complex presets, going beyond the limits of the standard FM3. The footswitch display size upgrade is significant, with the height of individual characters of text doubling, as well as being presented in a bolder and more readable font. Overall product dimensions and weight remain the same as the original version.
The Sound of Fractal Audio
The FM3 features our latest CYGNUS X2 Amp Modeling—a technology developed by Fractal Audio for the award-winning Axe-Fx III. It captures the sound — and the equally important feel — of real tube amps, with 300+ models offering an impressive range of clean tones, elusive “edge of breakup”, and everything from warm, touch-sensitive overdrive to face-melting modern distortion.
The FM3 also includes the entire speaker cab impulse response (“IR”) collection from the Axe-Fx III, with 2,200+ “Factory” choices and 1,024 “User” locations to store custom cabs, widely available for free and from commercial producers. Firmware 7 adds new DynaCab™ technology, giving you a visual mic-on-cab tone shaping experience that’s easier than ever before.
As a multi-effects unit, the FM3 truly excels. It includes a superb selection of Fractal Audio’s state-of-the-art effect algorithms. All of the essentials and many exciting innovations are on board: dazzling drive pedals, dozens of delays, reverbs, compressors, EQs, phasers, flangers and other modulation effects, a looper, and much more.
Impressive USB Audio Capabilities
Playback, Record, Re-Amp
With a USB connection to a Mac or PC, the FM3 works as an extremely high quality 4×4 audio interface for playback, recording, and re-amping. This lets the FM3 double as the hub of a portable recording studio.
USB channels are mapped for ease of use. For example, to record the processed stereo output of the FM3, just record inputs 1 and 2 in the computer. Computer inputs 3 and 4 can be used to capture a DI, or to record input 2 L+R in stereo.
Computer playback is also easy and flexible. For studio work, you can mix a project and the FM3 to a single pair of connected monitors and transmit a separate DI to the FM3 for re-amping. For live performances, you can route the stereo FM3 and stereo backing tracks to different stereo outputs.
USB also allows 2-way communication between the FM3 and its companion software applications, FM3-Edit and Fractal-Bot.
A Rugged Floor Unit
The FM3 is housed in a durable steel chassis with protective endcaps designed to withstand the rigors of touring.
Three onboard footswitches – each with variable-color LED ring and mini LCD display — provide both tap and hold functions, which can be customized to do different things on eight different switch “layouts.” The new “Views” feature multiplies the power of layouts, in effect creating a virtual 12-button controller with a 3-button footprint.
In addition, a FASLINK II port allows the FM3 to be connected with up to two Fractal Audio FC-12 or FC-6 foot controllers, providing an exciting array of extended control options.
While designed as a floor unit, the FM3 features an intuitive hands-on interface with the same full-color display and familiar, easy-to-use front panel controls found on the Axe-Fx III.
The unit is powered by a 3-Core “Griffin” DSP with one ARM and two SHARC+ cores providing superior power in a compact format. A dedicated graphics processor allows the main DSPs to be focused on critical audio tasks
The FM3 is shown here with an FC-6 controller and one EV-2 Expression Pedal,
a configuration sometimes known as “OMG9”
FM3-Edit is a full-featured Mac/PC editor for the FM3. You can view, edit, and manage presets, and much more.
You will immediately discover the advantages of working on a large computer screen with a full keyboard and mouse/touchpad. FM3-Edit makes it even easier to create and dial in even the most complex setups.
View entire presets at a glance, edit blocks and parameters, copy/paste, drag and drop, and more.
Speed your workflow with preset Templates, or use the Block Library stored on your computer to access your favorite settings in one click.
Unlock your full creative potential with FM3-Edit, available for free.
Summary of Features
FM3 is a compact floor unit with three onboard switches.
3-Core “Griffin” Processor plus dedicated GPU.
Hundreds of accurate models with real tube amp sound and feel.
Rugged steel chassis with protective endcaps and handles
Features CYGNUS Amp Modeling developed for the Axe-Fx III
Easy-to-use front panel interface, plus free FM3 Edit software.
Includes all factory cabs from Axe-Fx III, plus 1,024 user cab slots.

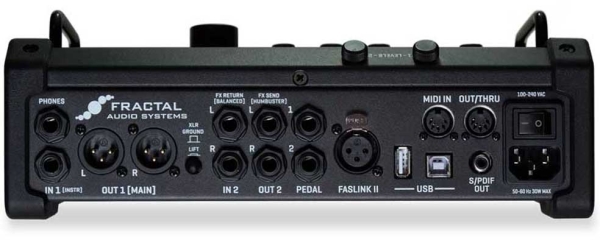

Ultra-low noise instrument input plus XLR stereo main outputs.
Impressive multi-effects capability based on Axe-Fx III.
Additional Stereo I/O Pair, plus headphone & SPDIF outputs.
Uncompromising sound quality and road-worthy reliability.
4×4 USB Audio, 2 onboard switch/pedal jacks, MIDI In & Out/Thru
Fantastically flexible 3-button integrated foot controller.
Easy-to-Read precision Tuner with graph and virtual strobe displays.
FASLINK II allows adding up to two FC-12/FC-6 controllers.
Upgradeable firmware allows constant improvement and innovation
