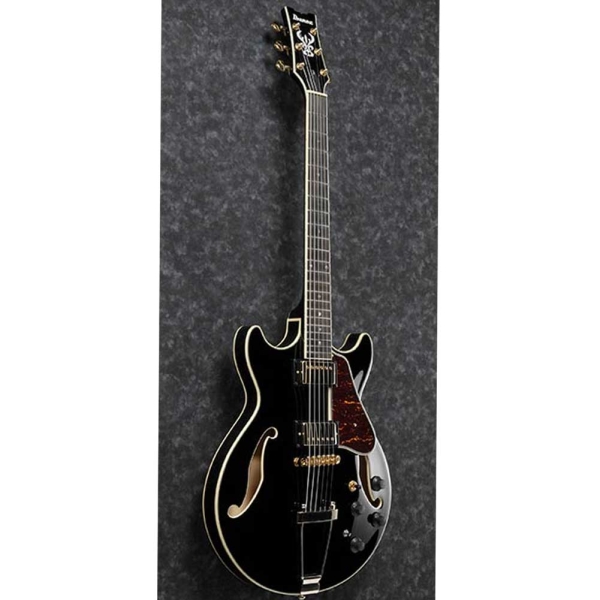

Ibanez AMH90 BK AM Artcore Expressionist Hollow Body Electric Guitar 6 String with Gig Bag
neck type AM Expressionist 3pc Nyatoh/MapleSet-in neck
top/back/side Linden top Linden back Linden sides
fretboard Bound Macassar Ebony fretboard Abalone dot inlay
fret Medium frets
number of frets 22
bridge Gibraltar Performer bridge
string space 10.5mm
tailpiece VT06 tailpiece
neck pickup Super 58 (H) neck pickup Passive/Alnico
bridge pickup Super 58 (H) bridge pickup Passive/Alnico
factory tuning 1E,2B,3G,4D,5A,6E
string gauge .010/.013/.017/.030/.042/.052
hardware color Gold
Scale : 628mm
a : Width 43mm at NUT
b : Width 57mm at 22F
c : Thickness 21mm at 1F
d : Thickness 24mm at 9F
Radius : 305mmR
a : Length 17 5/8″
b : Width 14 1/2″
c : Max Depth 2 5/8″

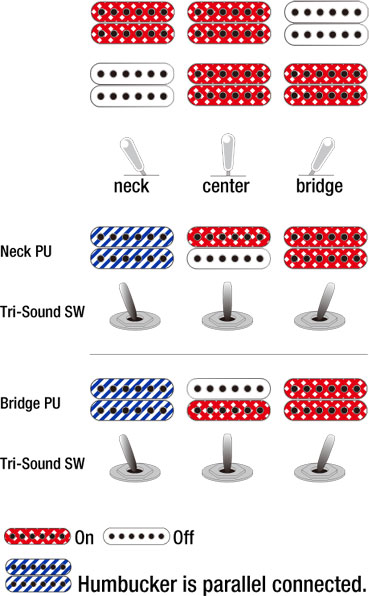

AMH90’s Switching system diagram

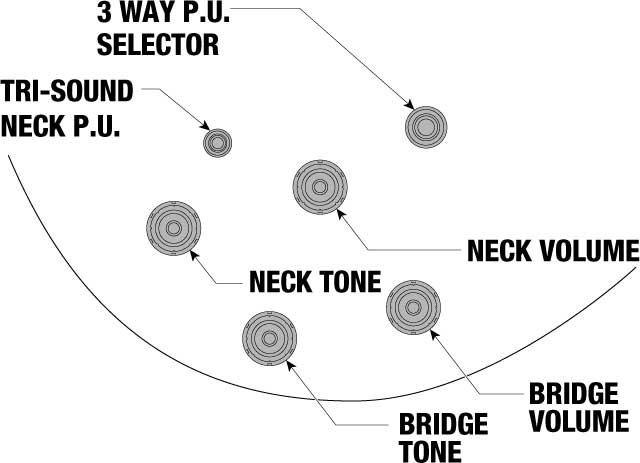

AMH90’s control diagram
Recommended Bag IGB540-BK
Tri-sound switch (for neck pickup)
The Tri-sound switch gives a humbucker pickup three different sounds, expanding the versatility of your guitar.
The artistically-designed VT06 tailpiece provides both great tuning stability and rich sustain.
Gibraltar Performer bridge
The Gibraltar Performer bridge provides rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.
3pc Nyatoh/Maple neck
The 3pc Nyatoh/Maple Neck provides a rich mid-low end and great resonance.
Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.
Super 58 Pickups
Super 58 pickups feature moderate output and vintage tone.
