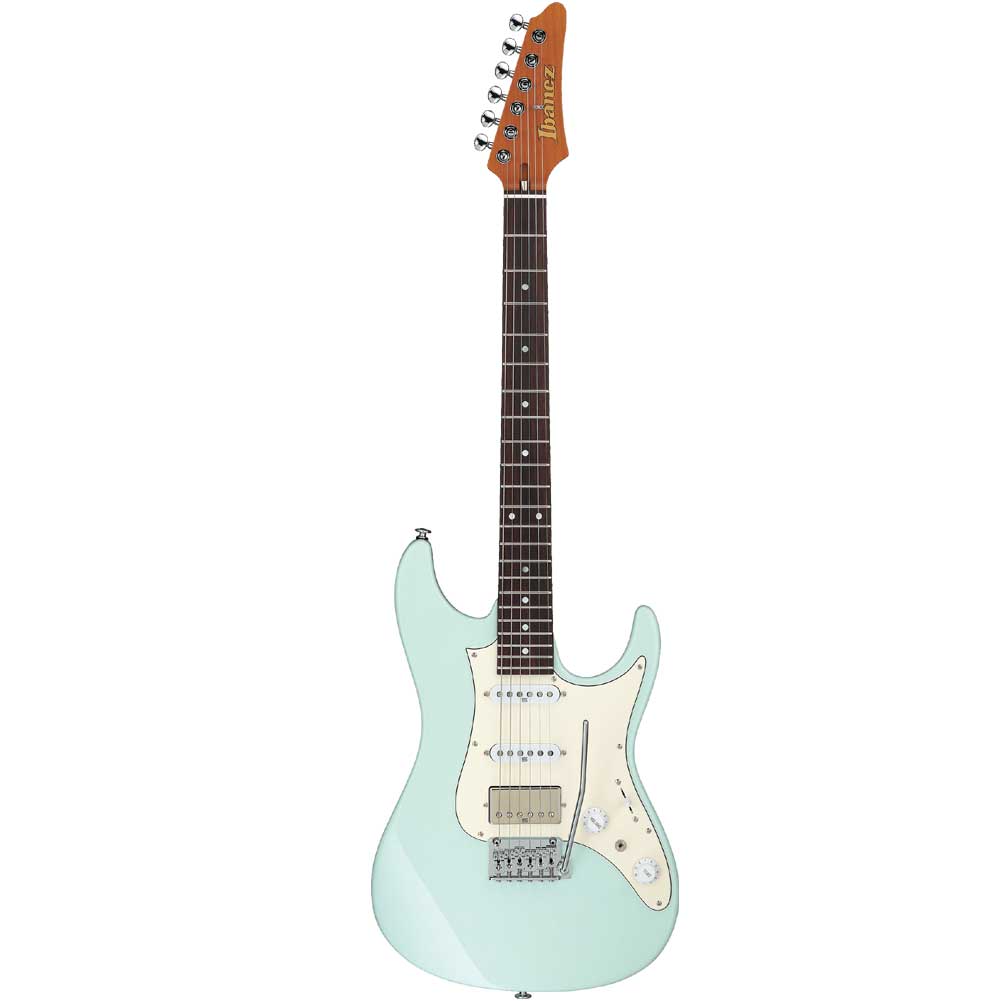

Ibanez AZ2204NW MGR AZ Prestige Electric Guitar with Hardshell 6 String


Buy at www.musicianscart.com Ibanez AZ2204NW MGR AZ Prestige Electric Guitar with Hardshell 6 String,AZ Oval CS-TECH WOOD Roasted Maple neck,Alder body,Rosewood fretboard Mother of Pearl dot inlay,22 frets,Gotoh T1702B bridge,Seymour Duncan Fortuna (S) neck pickup Passive/Alnico,Seymour Duncan Fortuna (S) middle pickup Passive/Alnico,Seymour Duncan Fortuna (H) bridge pickup Passive/Alnico,Gotoh Magnum Lock machine heads w/H.A.P.,dyna-MIX9 switching system w/Alter Switch,Luminlay side dots,5 tremolo springs,Non-recessed bridge cavity.

166,583 175,350


Ibanez AZ2204NW MGR AZ Prestige Electric Guitar with Hardshell 6 String

There are three principles behind our new Ibanez Prestige line: Precision, Performance, and Playability. The combination of high-tech manufacturing techniques with old-world Japanese craftsmanship, true innovation in design and construction, and the incorporation of ideas and suggestions from musicians from around the world are the cornerstones of the Prestige production process.

Designed to Inspire, all Ibanez Premium series are manufactured with select tone woods, high-profile electronics, hardware and dedicated skills of craftsmanship and care in details for your musical journey. The richness of sound, stunning appearance and unrivalled playability of the Ibanez Premium series will open the gate of your reservoir of inspiration.

Colors :
MGR : Mint Green
DTB : Dark Tide Blue

neck type AZ Oval CS-TECH WOOD Roasted Maple neck
top/back/body Alder body
fretboard Rosewood fretboard Mother of Pearl dot inlay
fret Jumbo Stainless Steel frets Prestige fret edge treatment
number of frets 22
bridge Gotoh T1702B bridge
string space 10.5mm
neck pickup Seymour Duncan Fortuna (S) neck pickupPassive/Alnico
middle pickup Seymour Duncan Fortuna (S) middle pickupPassive/Alnico
bridge pickup Seymour Duncan Fortuna (H) bridge pickupPassive/Alnico
factory tuning 1E,2B,3G,4D,5A,6E
strings D’Addario EXL110
string gauge .010/.013/.017/.026/.036/.046
hardware color Chrome

Scale : 648mm/25.5″
a : Width 42mm at NUT
b : Width 56.4mm at 22F
c : Thickness 20.5mm at 1F
d : Thickness 22.5mm at 12F
Radius : 228mmR to 305mmR COMPOUND


AZ2204NW’s Switching system diagram

AZ2204NW’s control diagram

Hardshell case included
Gotoh Magnum Lock machine heads w/H.A.P.
dyna-MIX9 switching system w/Alter Switch
Luminlay side dots


Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.

Compound Radius Fretboard (228mm to 305mm)
Offering the best of both worlds, the digitized compound radius fretboard of the AZ-N is built to enhance both smooth chording and lead work in the upper register.

5 tremolo springs
Five tremolo springs allow string vibration to be more efficiently transferred to the guitar body.

Non-recessed bridge cavity
While the AZ series features a recessed bridge cavity for fluid and dynamic tremolo action, this model has non-recessed bridge cavity. The direct contact between bridge plate and the guitar body provides better resonance and helps facilitate subtle nuances in playing dynamics.

Dyna-MIX 9 switching system w/Alter switch
Dyna-MIX 9 offers nine sound variations, and can easily switch between humbucker and single coil modes with just the mini switch. One mode is even able to simulate a humbucker sound from the combination of the 2 single coil pickups.

Seymour Duncan Fortuna S-S-H pickups
Seymour Duncan Fortuna Pickups feature a moderate output and natural clean voicing which accurately reflect subtle playing nuances. From treble to bass, the overall tonal balance is evenly adjusted and works well with various effect pedals.

Gotoh T1702B tremolo bridge
The T1702B tremolo bridge provides quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm. The tremolo block and saddles are made of brass, facilitating better overall resonance.

AZ Oval C S-TECH WOOD Roasted Maple neck
S-TECH special roasted treatment increases the wood’s stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.

Gotoh Magnum Lock machine heads w/H.A.P.(Height Adjustable Post)
The AZ comes with GOTOH MAGNUM LOCK machine heads, which have an established reputation for tuning stability. Its H. A. P (Height Adjustable Post). system allows for the adjustment of string posts for the appropriate tension of each string.

Luminlay side dot inlays
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Ergonomic rear body contour

Ergonomic rear body contour
A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.

Super All Access Neck Joint

Super All Access Neck Joint
The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.

Weight 5.0000 kg
