Ibanez AZ24027 TFF Prestige 7 String Electric Guitar With Hardshell Case
There are three principles behind the Ibanez Prestige line: Precision, Performance, and Playability. Prestige combines high-tech manufacturing techniques with old-world Japanese craftsmanship, in order to achieve true innovation in design and construction. The series incorporates ideas and suggestions from musicians from around the world as the cornerstones of the Prestige production process.
Colors : AZ24027 TFF -Tri-Fade Burst Flat
neck type AZ 7 Oval CS-TECH WOOD Roasted Maple neck
top/back/body Alder body
fretboard S-TECH WOOD Roasted Maple fretboard Black dot inlay
fret Jumbo Stainless Steel frets Prestige fret edge treatment
number of frets 24
bridge Gotoh® T1872S bridge
string space 10.5mm
neck pickup Seymour Duncan® Hyperion™7 (H) neck pickup Passive/Alnico
bridge pickup Seymour Duncan® Hyperion™7 (H) bridge pickup Passive/Alnico
factory tuning 1E,2B,3G,4D,5A,6E,7B
strings D’Addario® EXL110-7
string gauge .010/.013/.017/.026/.036/.046/.059
nut Graph Tech® BLACK TUSQ XL® nut
hardware color Chrome
Scale : 648mm/25.5″
a : Width 47mm at NUT
b : Width 66mm at 24F
c : Thickness 20.5mm at 1F
d : Thickness 22.5mm at 12F
Radius : 305mmR
AZ24027’s Switching system diagram
AZ24027’s control diagram
Hardshell case included
dyna-MIX10 switching system w/Alter Switch
Luminlay side dots

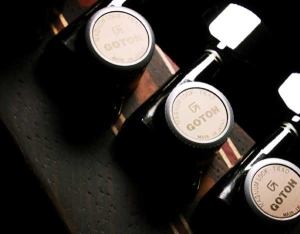

Gotoh® MG-T locking machine heads
locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
Gotoh® T1872S tremolo bridge
The T1872S tremolo bridge features machined titanium saddles and a machined steel tremolo block for a quick response, thick lows and rich highs and its snap-in construction makes it easy to load a tremolo arm.
Dyna-MIX 10 switching system w/Alter switch
dyna-MIX 10 offers ten sound variations, and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.

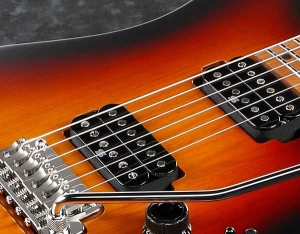

Seymour Duncan® Hyperion™ Pickups
Seymour Duncan® Hyperion™ Pickups feature a moderate output through Alnico-5 magnets to keep the clarity of the fundamental tone when using a distortion sound, and to deliver a clear pick attack. From treble to bass, the overall tonal balance is evenly adjusted., and works well with various effect pedals.
S-TECH WOOD Roasted Maple fretboard w/Black dot inlay
S-TECH special roasted treatment provides a superior attack and a well-balanced tone and a rich sustain. In order to achieve supreme neck grip comfort, the fretboard edge is finished with a smooth curve.

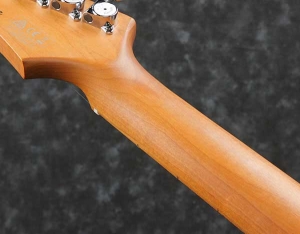

AZ Oval C S-TECH WOOD Roasted Maple neck
S-TECH special roasted treatment increases the wood’s stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.

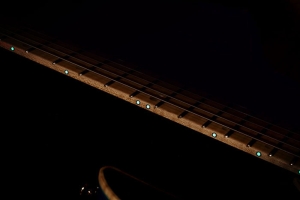

Luminlay side dot inlays
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
