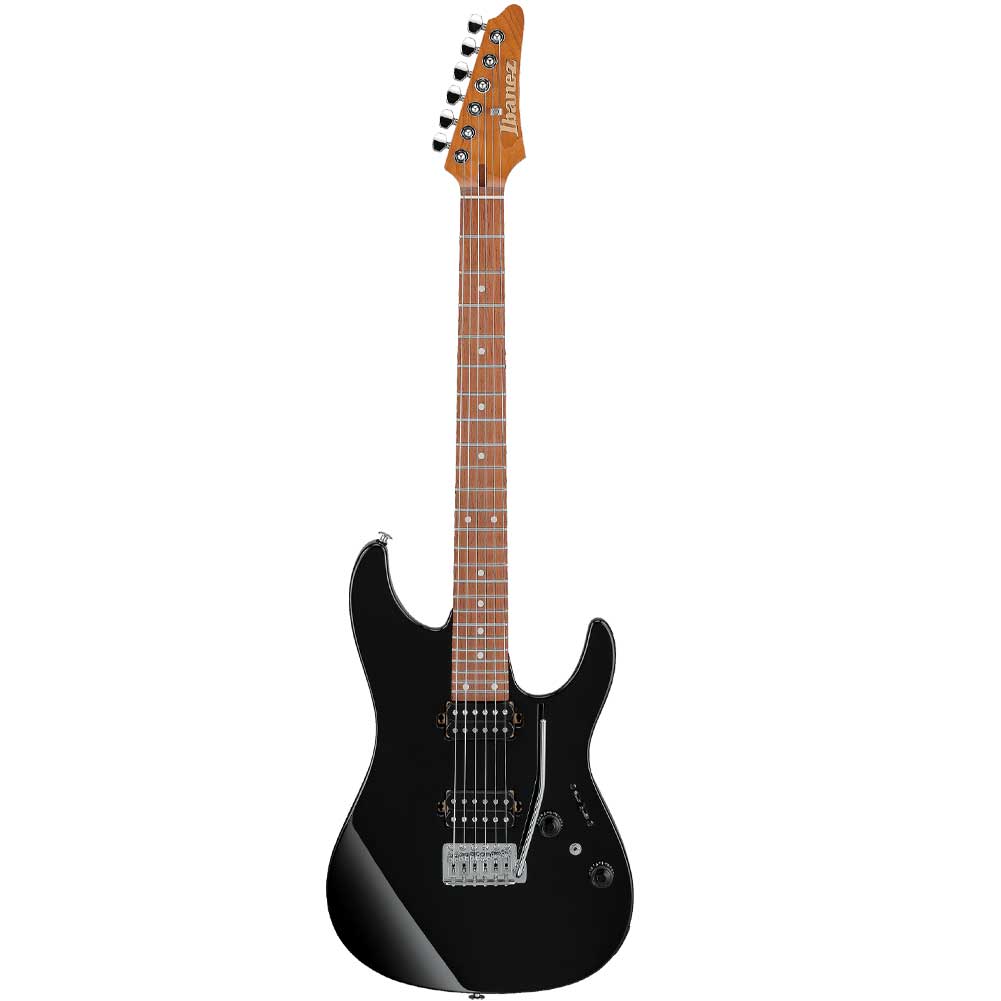

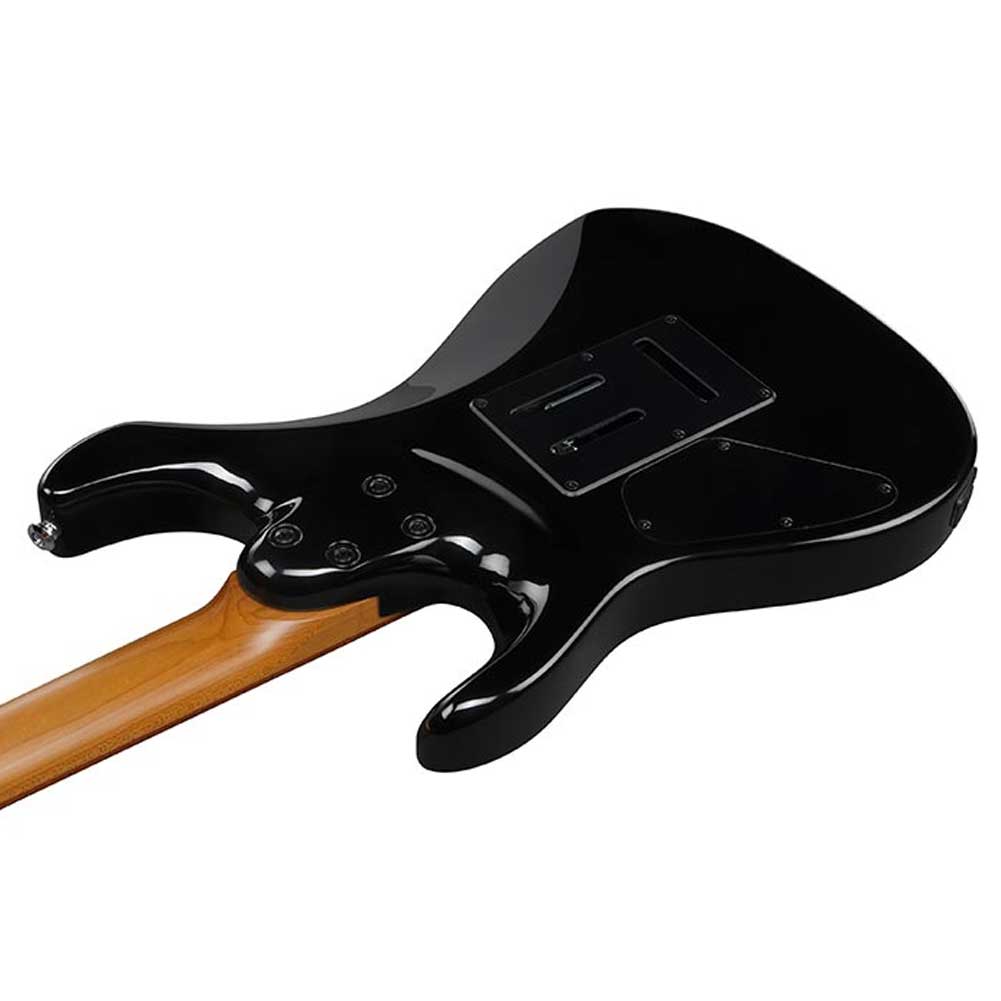

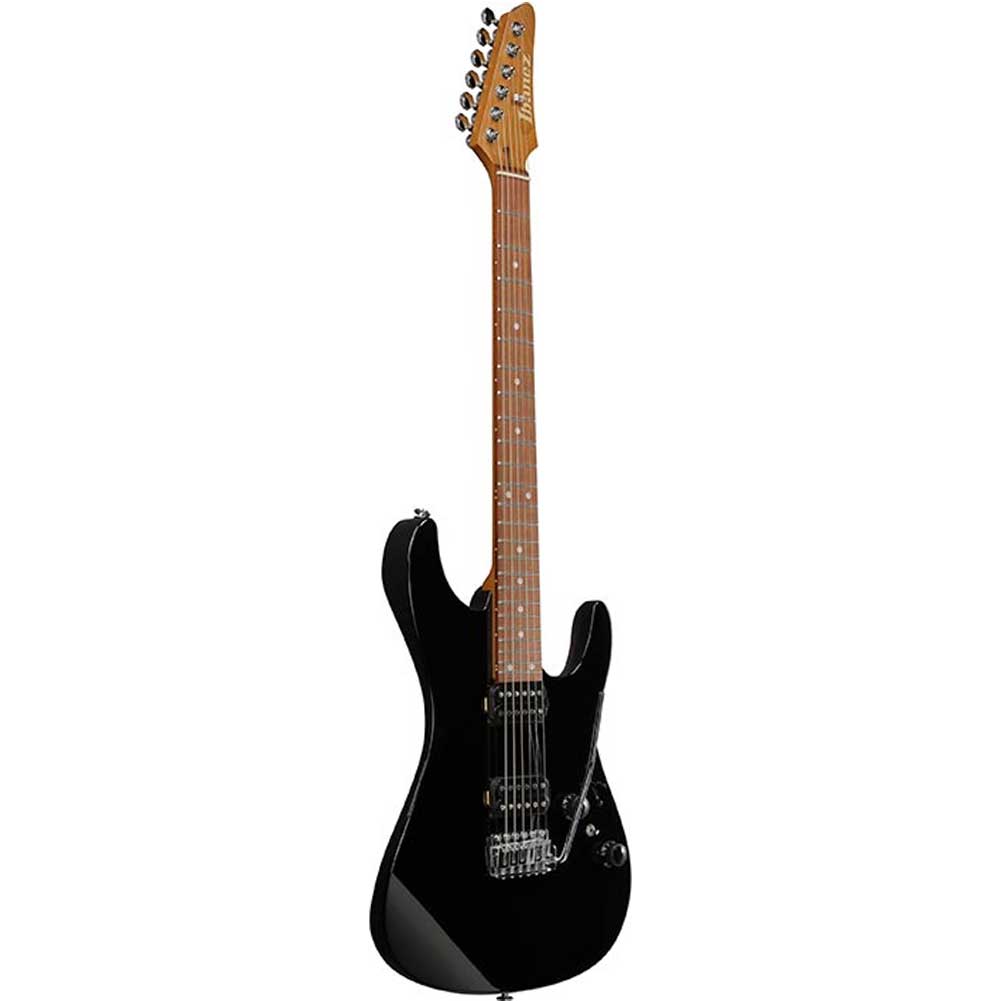

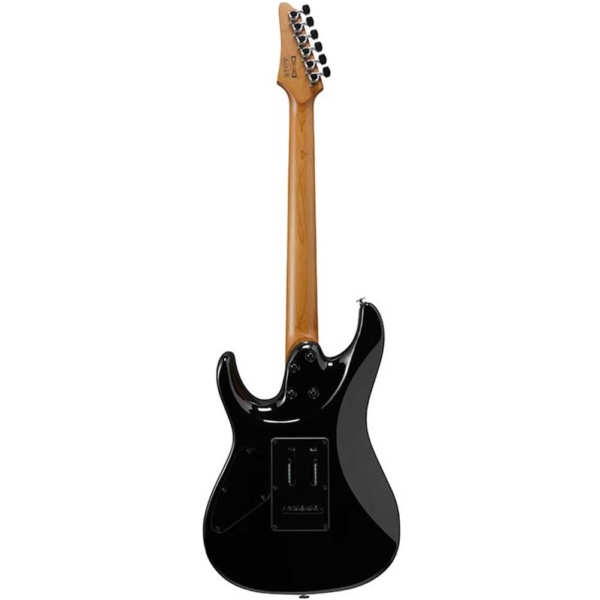

Ibanez AZ24S2 BK AZ Standard Series Roasted Maple Fretboard HH Electric Guitar 6 String with Gig Bag

Ibanez AZ24S2 BK AZ Standard Series Roasted Maple Fretboard HH Electric Guitar 6 String with Gig Bag

SPECS
neck type AZ Roasted Maple neck
top/back/body Alder body
fretboard Jatoba fretboardWhite dot inlay
fret Jumbo Stainless Steel frets
number of frets 24
bridge T106 bridge
string space 10.5mm
neck pickup Ibanez Modern Custom (H) neck pickup Passive/Alnico
bridge pickup Ibanez Modern Custom (H) bridge pickup Passive/Alnico
factory tuning 1E,2B,3G,4D,5A,6E
strings –
string gauge .010/.013/.017/.026/.036/.046
hardware color Chrome

NECK DIMENSIONS
Scale : 648mm/25.5″
a : Width 42mm at NUT
b : Width 57mm at 24F
c : Thickness 20.5mm at 1F
d : Thickness 22.5mm at 12F
Radius : 305mmR

SWITCHING SYSTEM
AZ24S2’s Switching system diagram

CONTROLS
AZ24S2’s control diagram

OTHER FEATURES
Recommended Case M300C
Recommended Bag IGB540-BK
dyna-MIX10 switching system w/Alter Switch
Locking machine heads

Features

Roasted Maple neck
The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.

Jatoba fretboard
Jatoba has a reddish brown color and produces a rich mid range with a crisp high end.

Jumbo Stainless Steel frets
Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.

Locking machine heads
Locking machine heads ensure accurate and stable tuning.

Alder body
The Alder body delivers a well-balanced bright tone, enriched resonance and sustain.

Ibanez Modern Custom pickups
Ibanez Modern Custom pickups feature a dual humbucker configuration with alnico V magnets. They offer powerful tone and a quick response, which pair especially well with overdrive and distortion.

T106 tremolo
The T106 tremolo bridge with 6 independent saddles makes precise height and intonation adjustment of each string easy.

dyna-MIX9 switching system with Alter Switch
The dyna-MIX 9 offers nine sound variations and can switch between humbucker and single coil modes with just a flick of the mini switch. One mode even simulates a humbucking sound from the combination of two single coil pickups.

Super All Access Neck Joint
The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
