Ibanez AZ47P1QM BIB AZ Premium Series Electric Guitar 6 String with Gig Bag

Ibanez AZ47P1QM BIB AZ Premium Series Electric Guitar 6 String with Gig Bag

SPECS

• neck type AZ Oval C Roasted Maple neck
  top/back/body Quilted Maple top American Basswood body
  fretboard Ebony fretboard Mother of Pearl dot inlay
  fret Jumbo Stainless Steel frets
  number of frets 24
  bridge Gotoh® T1502 bridge
  string space 10.5mm
  neck pickup DiMarzio® Air Norton™ (H) neck pickup Passive/Alnico
  middle pickup DiMarzio® True Velvet™ (S) middle pickup Passive/Alnico
  bridge pickup DiMarzio® The Tone Zone® (H) bridge pickup Passive/Alnico
  factory tuning 1E,2B,3G,4D,5A,6E
  strings D’Addario® EXL110
  string gauge .010/.013/.017/.026/.036/.046
  nut Graph Tech® nut
  hardware color Gold

NECK DIMENSIONS

• Scale : 648mm/25.5″
  a : Width 42mm at NUT
  b : Width 57mm at 24F
  c : Thickness 20.5mm at 1F
  d : Thickness 22.5mm at 12F
  Radius : 305mmR

SWITCHING SYSTEM
AZ47P1QM’s Switching system diagram

CONTROLS
AZ47P1QM’s control diagram

OTHER FEATURES
Recommended Case MR500C
Gig bag included
Gotoh® MG-T locking machine heads
Luminescent side dot inlay

Features

DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups
The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.

Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

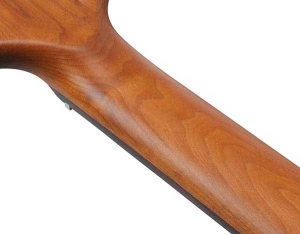

Oval C Roasted Maple neck
Heat-treatment increases the wood’s stability, durability, water resistance and tolerance of temperature changes.

Gotoh® T1502 tremolo bridge
The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.
