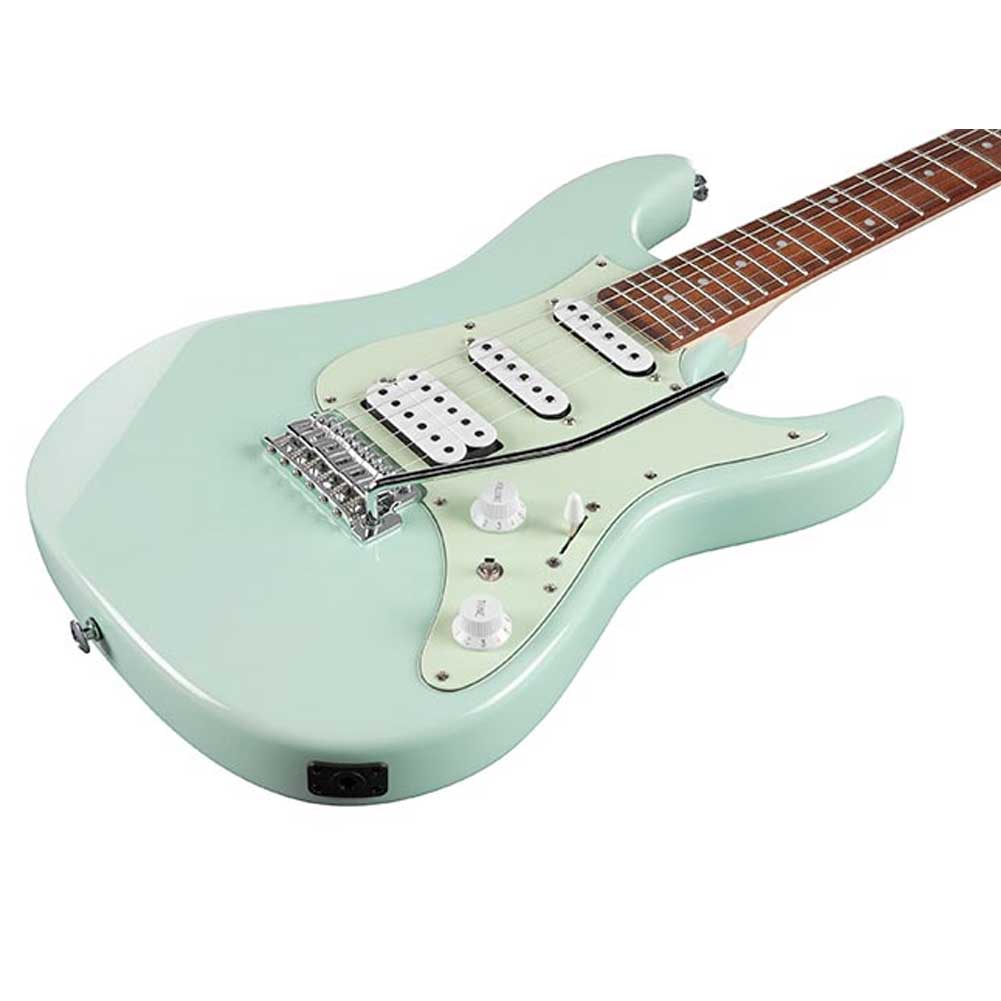

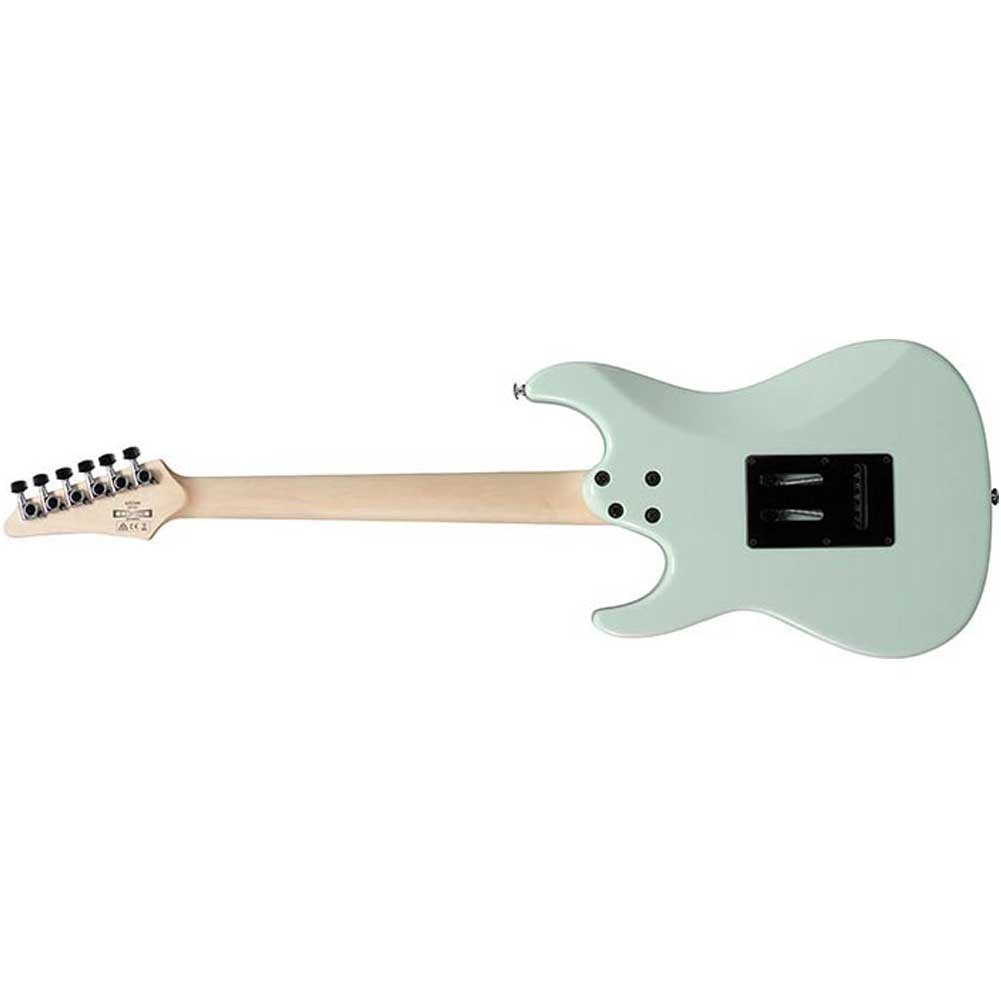

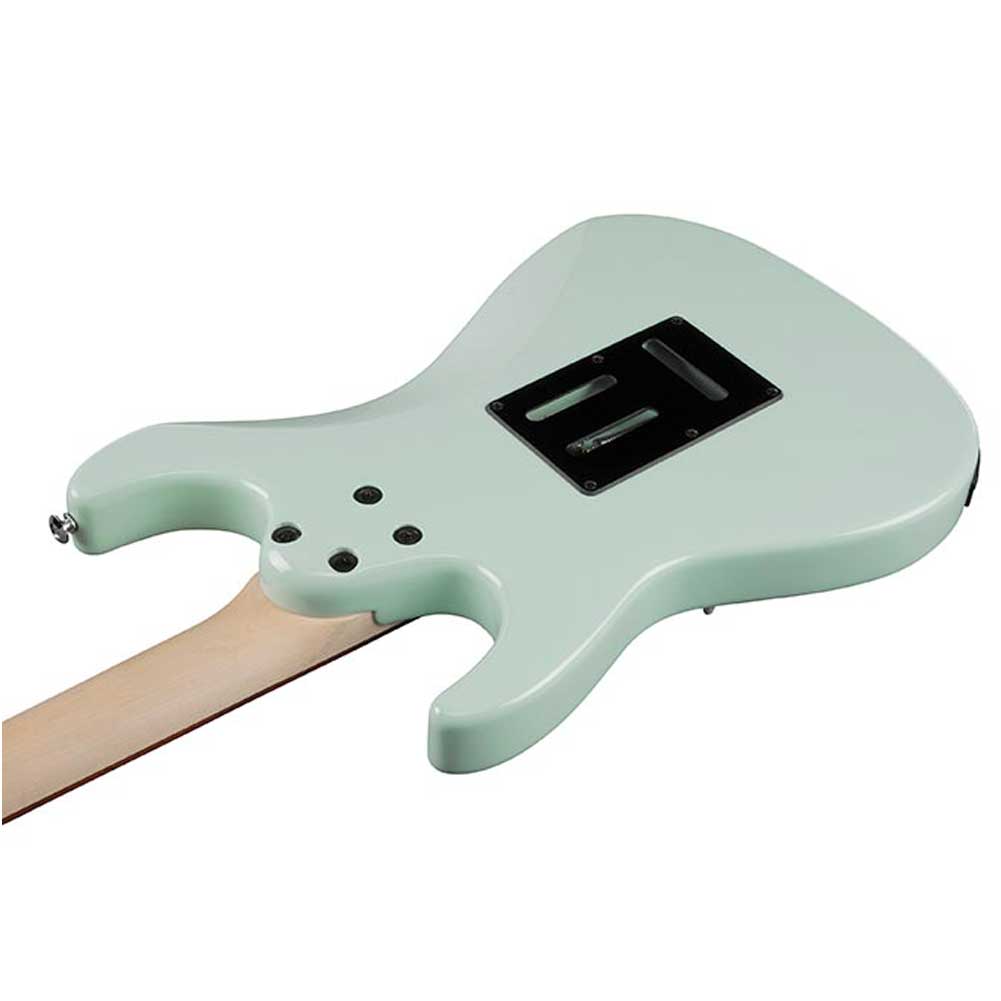

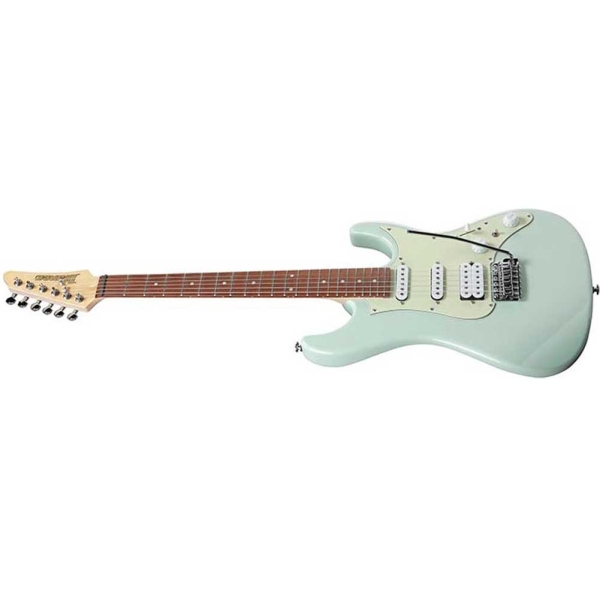

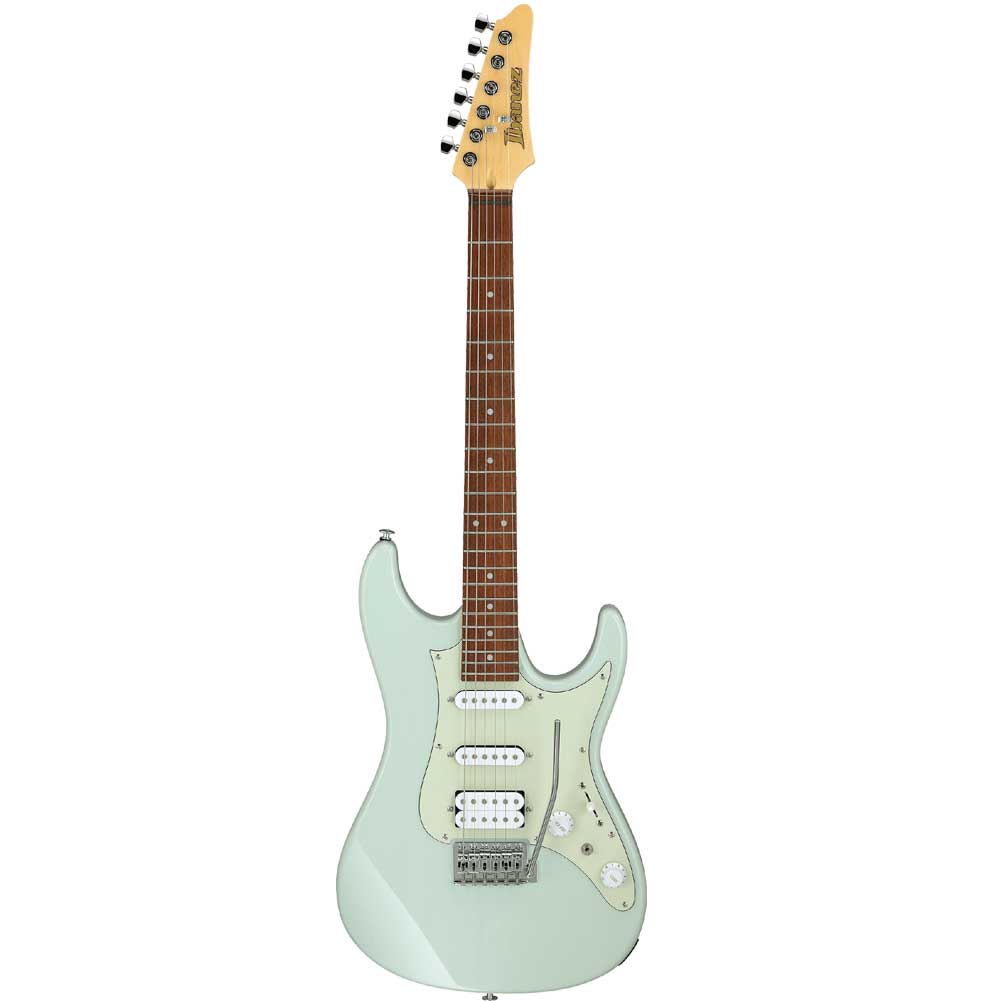

Ibanez AZES40 MGR AZES Essential Series Electric Guitar 6 String with Gig Bag
Ibanez AZES Electric Guitar with a poplar body, which is paired with the trademark snap and sustain of a maple neck and silky-smooth playability of jatoba for the fingerboard. Beginners are guaranteed to benefit from enlisting these hard-hitting tonewoods, leading to less time sparring with the instrument to get it feeling just right and more time practicing beloved riffs. The AZES’s onboard electronics, with an SSS & HSS pickup combination for nailing both single-coil and humbucker sounds with the Essentials pickups alongside Ibanez’s dyna-MIX9 switching system for unleashing more sonic possibilities. With its impressive woods and electronics, the Ibanez AZES is an unprecedented beginner-grade instrument.
neck type AZES Maple neck
top/back/body Poplar body
fretboard Jatoba fretboard White dot inlay
fret Medium frets
number of frets 22
bridge T106 bridge w/ Comfort round Steel saddles
string space 10.5mm
neck pickup Essentials (S) neck pickup Passive/Ceramic
middle pickup Essentials (S) middle pickup Passive/Ceramic
bridge pickup Accord (H) bridge pickup Passive/Ceramic
factory tuning 1E,2B,3G,4D,5A,6E
strings D’Addario® EXL110
string gauge .010/.013/.017/.026/.036/.046
hardware color Chrome
Scale : 635mm/25″
a : Width 42mm at NUT
b : Width 56.4mm at 22F
c : Thickness 20.5mm at 1F
d : Thickness 22.5mm at 12F
Radius : 250mmR
AZes40’s Switching system diagram
AZES31’s control diagram
Ibanez machine heads w/ Split shaft
dyna-MIX9 switching system w/Alter Switch
The Maple neck provides stability and bright tonal character.
Jatoba has a reddish brown color and produces a rich mid range with a crisp high end.
Medium sized frets enhance the accuracy of your notes.
Poplar used as body wood delivers a well-balanced tone with incredible thickness.
Ibanez machineheads w/ Split-shaft
They feature die-cast housings and split-shaft. The die-cast housing offers protection from dusts and ease of tuning and the split-shaft makes it easy to change the strings.
25 inch scale
AZES guitars feature a 25″ scale length, which makes for an easier playing instrument for children and players of smaller stature. Additionally, as the 25″, medium scale is also large enough that the player can continue to grow with the instrument as they mature as a guitarist.
250mm fretboard radius
The 250mm fretboard radius is not too flat, not too round, and makes for an excellent choice for the first-time player. This radius is a great middle ground that allows for learning to play each note correctly, while still maintaining a high degree of comfort
Mono-unit output jack
The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.
All Access Neck Joint
All Access Neck Joint offers superior playability at the high frets.
Essentials / Accord S-S-H pickups
Essentials and Accord pickups provide well-balanced tone and as well as versatility, so that guitar players can enjoy various styles of music with just one instrument.
T106 tremolo w/ Comfort round Steel saddles
This T106 bridge is equipped with newly developed comfort round Steel saddles. Its construction provides wider range of height adjustment and ease of setting up. Additionally, the screws are less likely to stick out, leading to less stress on your strumming hand and better playing comfort.
dyna-MIX9 switching system with Alter Switch
The dyna-MIX 9 offers nine sound variations and can switch between humbucker and single coil modes with just a flick of the mini switch. One mode even simulates a humbucking sound from the combination of two single coil pickups.
