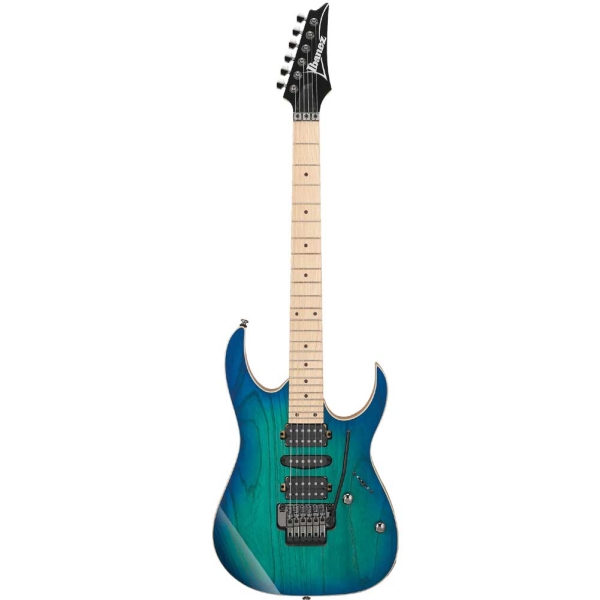

Ibanez RG470AHM BMT RG Standard Electric Guitar 6 Strings with Gig Bag

Ibanez RG470AHM BMT RG Standard Electric Guitar 6 Strings with Gig Bag

SPECS
neck type Wizard III Maple neck
top/back/body Ash body
fretboard Maple fretboard Black dot inlay
fret Jumbo frets
number of frets 24
bridge Edge-Zero II bridge
string space 10.8mm
neck pickup Quantum (H) neck pickup Passive/Ceramic
middle pickup Quantum (S) middle pickup Passive/Alnico
bridge pickup Quantum (H) bridge pickup Passive/Ceramic
factory tuning 1E,2B,3G,4D,5A,6E
strings D’Addario EXL120
string gauge .009/.011/.016/.024/.032/.042
nut Locking nut
hardware color Cosmo Black

NECK DIMENSIONS
Scale : 648mm/25.5″
a : Width 43mm at NUT
b : Width 58mm at 24F
c : Thickness 19mm at 1F
d : Thickness 21mm at 12F
Radius : 400mmR

SWITCHING SYSTEM
RG470AHM’s Switching system diagram

CONTROLS
RG470AHM’s control diagram

OTHER FEATURES
Recommended Case M300C
Recommended Bag IGB540-BK

Features

Maple fretboard
The Maple fretboard provide crisp, bright highs and strong upper mids.

Mono-unit output jack
The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.

Edge-Zero II tremolo bridge
The Edge Zero II bridge design features a lower profile tremolo for playing comfort and stud lock function for stable tuning.

Quantum pickups
The Quantum pickups provide accelerated bass response for exceptionally fast tracking of high-speed staccato riffing with crushing mid range and precise high-end articulation.

Wizard III Maple neck
Ibanez’s thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability and features a two-octave 24-fret fretboard for a wide tonal range.
