Ibanez RG9PB TGF RG Axe Design Lab Electric Guitar 9 Strings with Gig Bag

Ibanez RG9PB TGF RG Axe Design Lab Electric Guitar 9 Strings with Gig Bag

SPECS
neck type Wizard-9 5pc Maple/Walnut neck
top/back/body Poplar Burl top Nyatoh body
fretboard Macassar Ebony fretboard White dot inlay
fret Jumbo frets
number of frets 24
bridge Gibraltar Standard II-9 bridge
string space 10.8mm
neck pickup Fishman Fluence Modern Humbucker Alnico 9 (H) neck pickup Active/Alnico
bridge pickup Fishman Fluence Modern Humbucker Ceramic 9 (H) bridge pickup Active/Ceramic
factory tuning 1E,2B,3G,4D,5A,6E,7B,8F#,9C#
strings D’Addario EXL120-7 + .075/.090
string gauge .009/.011/.016/.024/.032/.042/.054/.075/.090
nut Graph Tech nut
hardware color Cosmo Black

NECK DIMENSIONS
Scale : 712mm/28″
a : Width 62mm at NUT
b : Width 88mm at 24F
c : Thickness 21.5mm at 1F
d : Thickness 23.5mm at 12F
Radius : 950mmR

SWITCHING SYSTEM

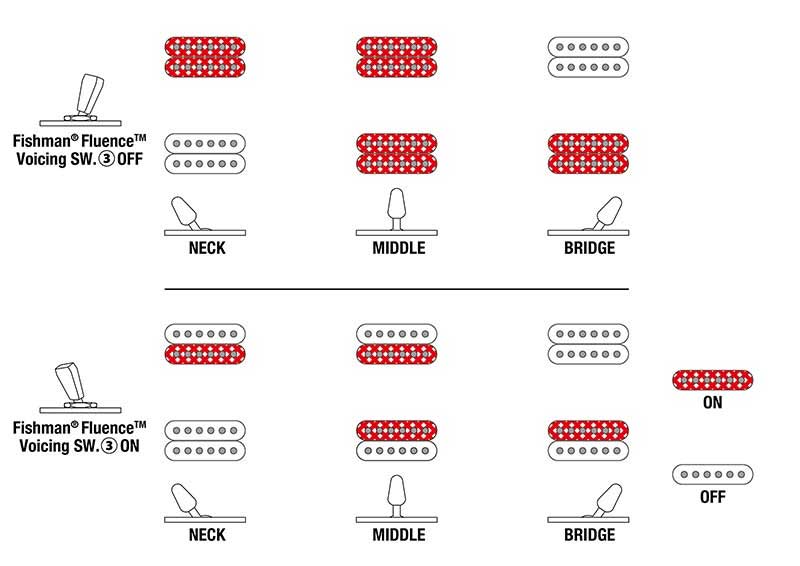

RG9PB’s Switching system diagram

CONTROLS

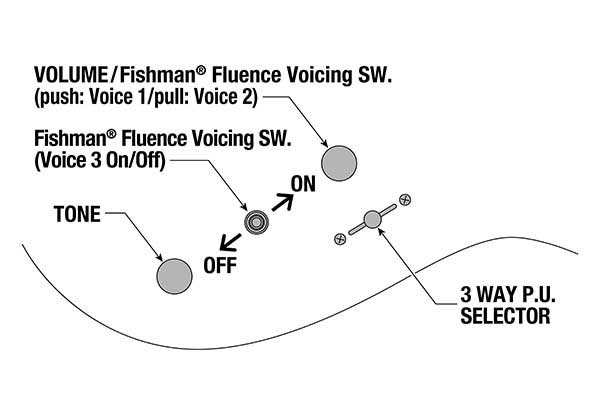

RG9PB’s control diagram

OTHER FEATURES
Recommended Case MR500C
Fishman Fluence Voicing switch on volume control (push/pull)

Features

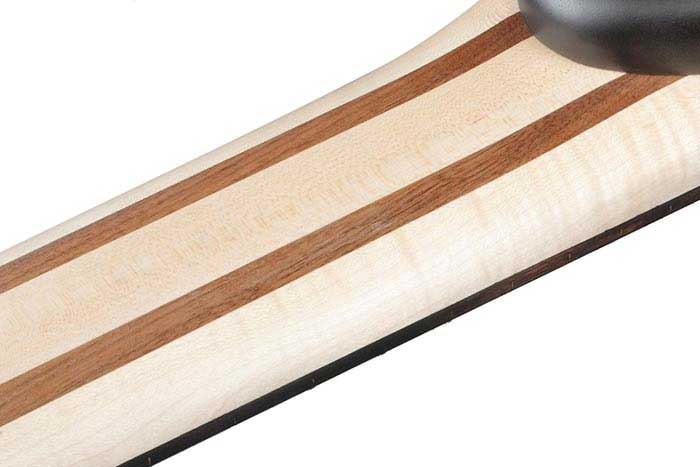

Wizard 5pc Maple/Walnut neck
Ibanez’s thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.

Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

Poplar Burl top / Nyatoh body
The Poplar Burl top features an exotic wood grain and the Nyatoh body provides a rich mid-low end.

Fishman Fluence Modern Humbucker Alnico / Fluence Modern Humbucker Ceramic pickups
The Fishman Fluence Modern Humbucker pickups provide an aggressive tone and a powerful attack without excess noise.

Gibraltar Standard II bridge
The Gibraltar Standard II is a simple fixed bridge designed to provide optimal transfer of each string’s vibration and its smooth surface maximizes playing comfort.

Coil-tap switch
The coil tap switch adds sound and tonal variations for both pickups.

Fishman Fluence Voicing switch on volume control (push/pull)
The Voicing switch allows the pickups to switch from a modern, active high output sound to a crisp, clean and fluid sound.
