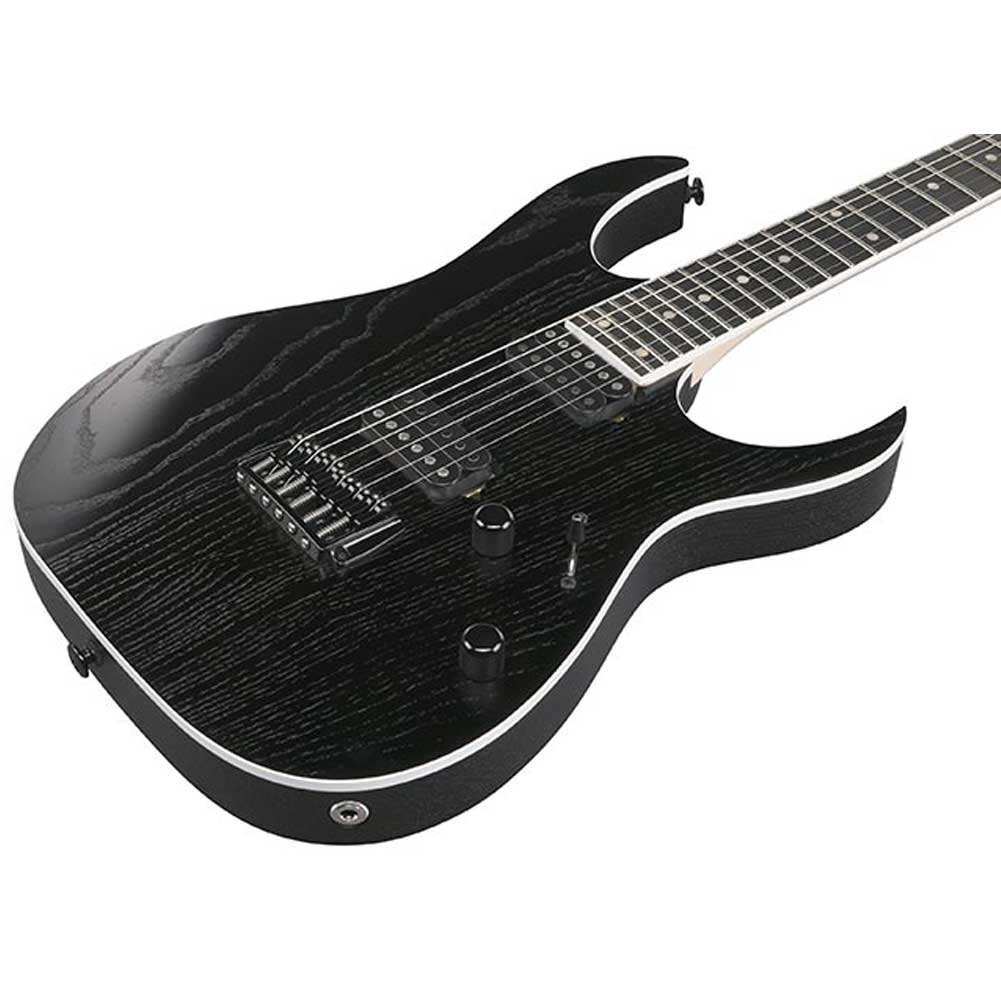

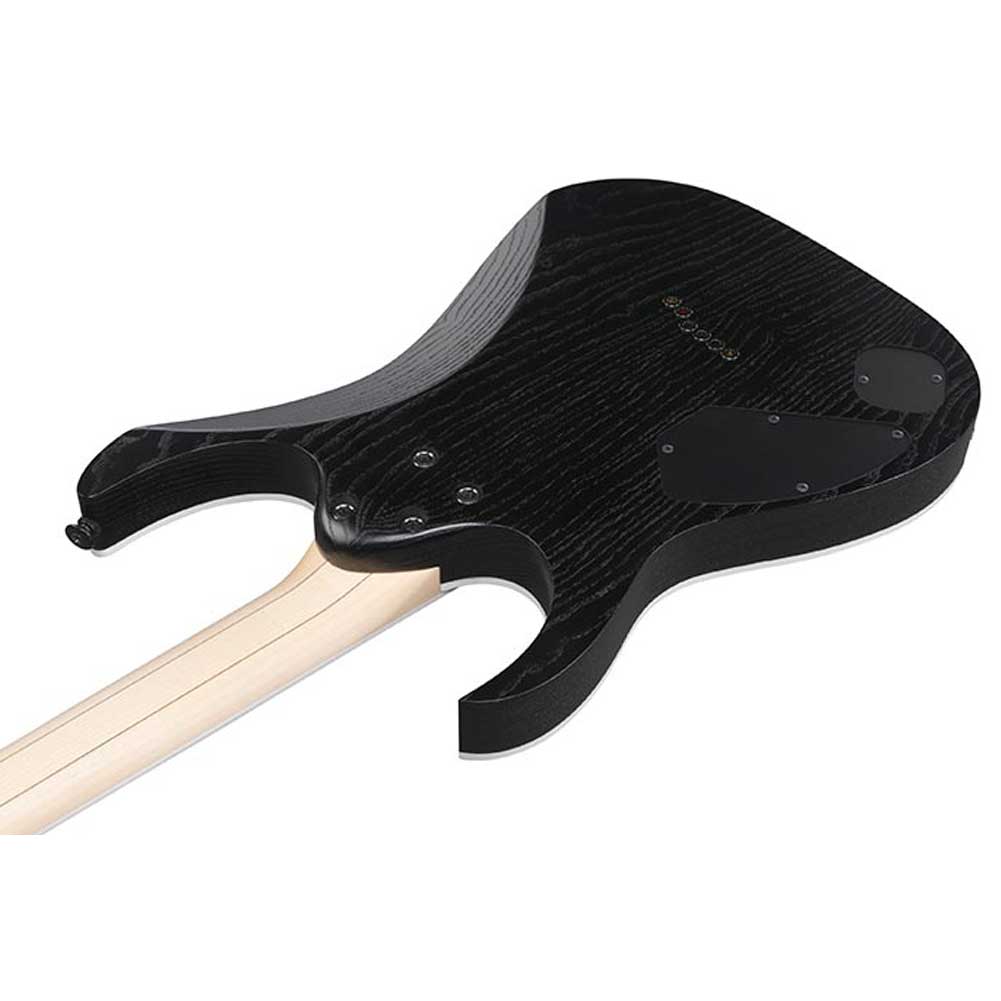

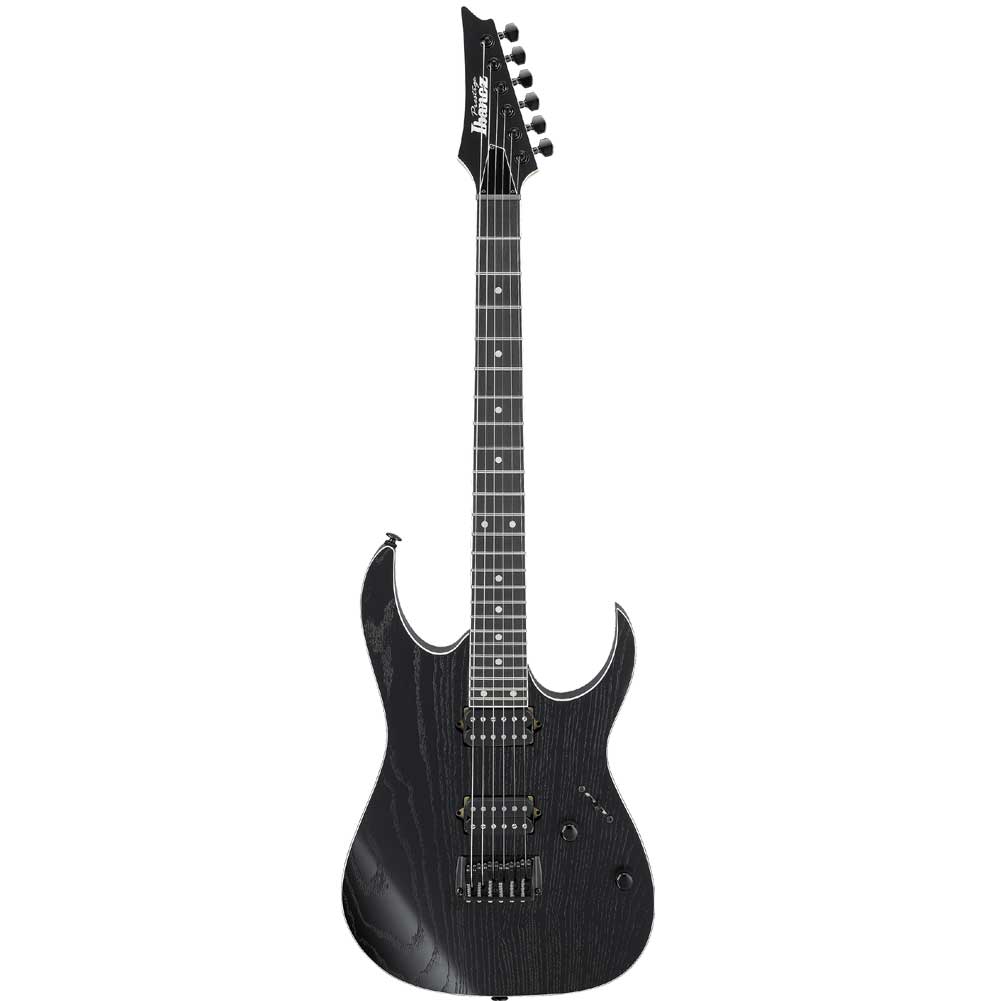

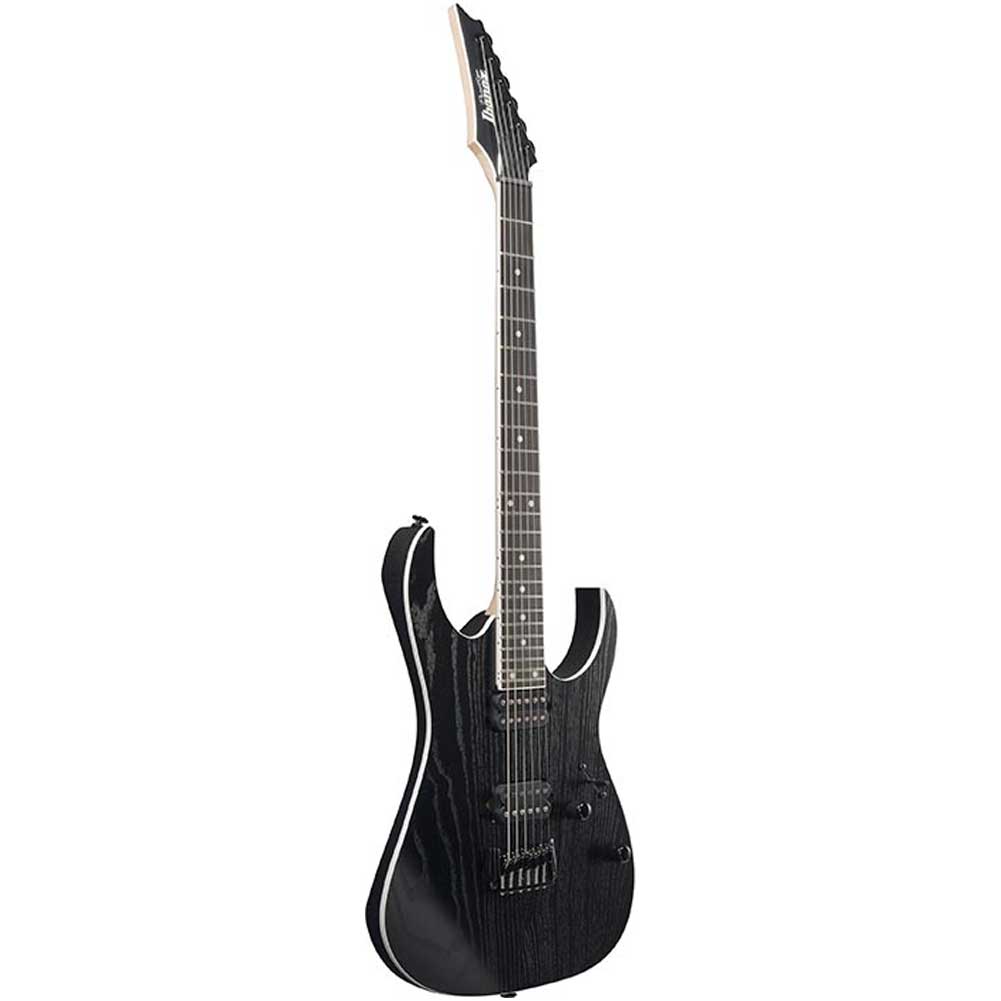

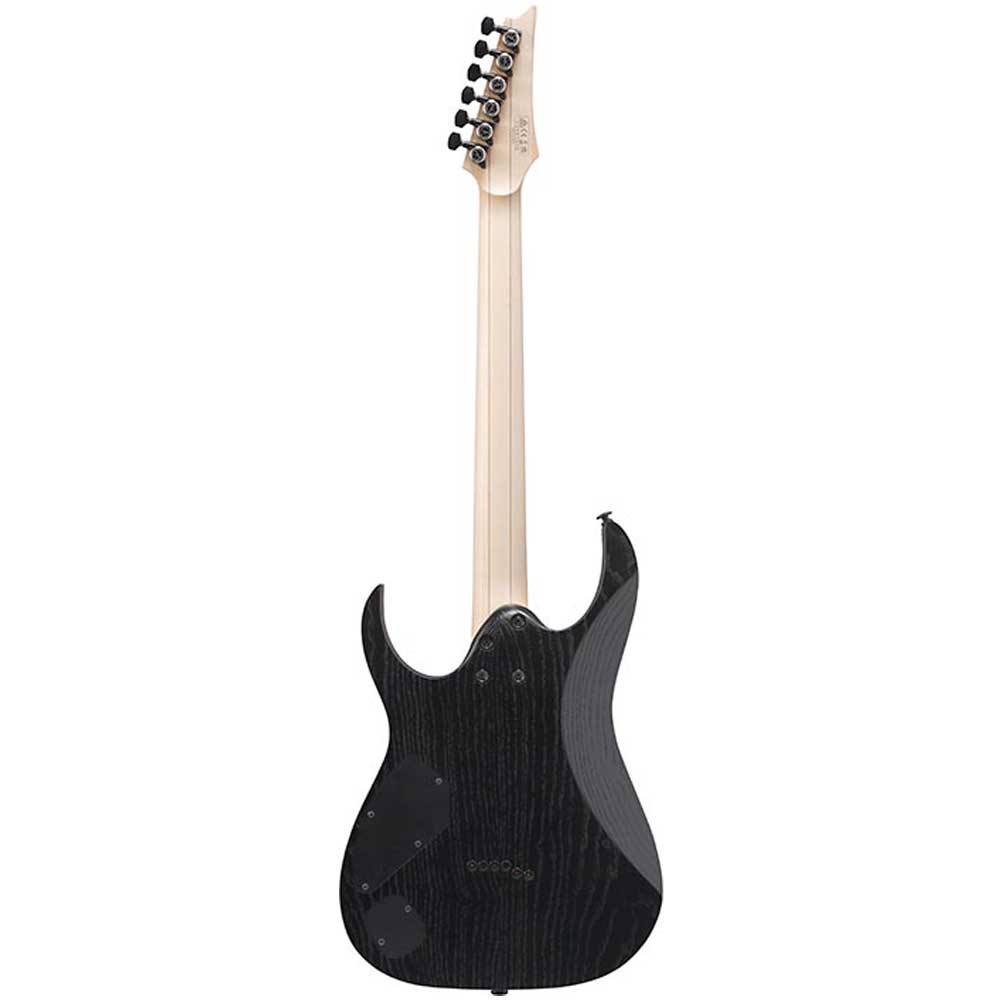

Ibanez RGR662AHBF WK Prestige 6 String Electric Guitar with Hardshell
Solidbody Electric Guitar with Ash Body, Maple/Walnut Neck, Rosewood Fingerboard, and 2 Humbucking Pickups – Weathered Black
neck type Super Wizard HP 5pc Maple/Walnut neck
top/back/body Ash body
fretboard Bound Rosewood fretboard White dot inlay
fret Jumbo frets Prestige fret edge treatment
number of frets 24
bridge Gibraltar Standard III bridge
string space 10.8mm
neck pickup DiMarzio® Air Norton™ (H) neck pickup Passive/Ceramic
bridge pickup DiMarzio® The Tone Zone® (H) bridge pickup Passive/Alnico
factory tuning 1E,2B,3G,4D,5A,6E
strings D’Addario® EXL110
string gauge .010/.013/.017/.026/.036/.046
nut Graph Tech® BLACK TUSQ XL® nut
hardware color Black
Scale : 648mm/25.5″
a : Width 43mm at NUT
b : Width 58mm at 24F
c : Thickness 17mm at 1F
d : Thickness 19mm at 12F
Radius : 430mmR

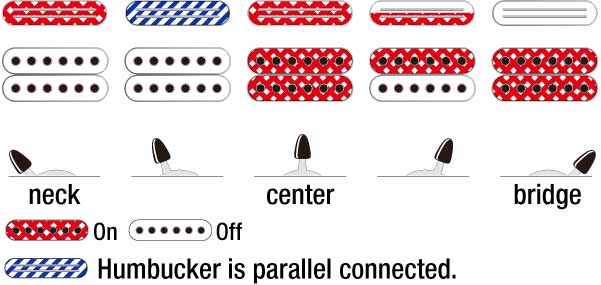

RGR662AHBF’s Switching system diagram
DESCRIPTION
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.

RGR662AHBF’s control diagram
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
Recommended Bag IGB724-BK
Hardshell case included
Gotoh® MG-T locking machine heads
Features

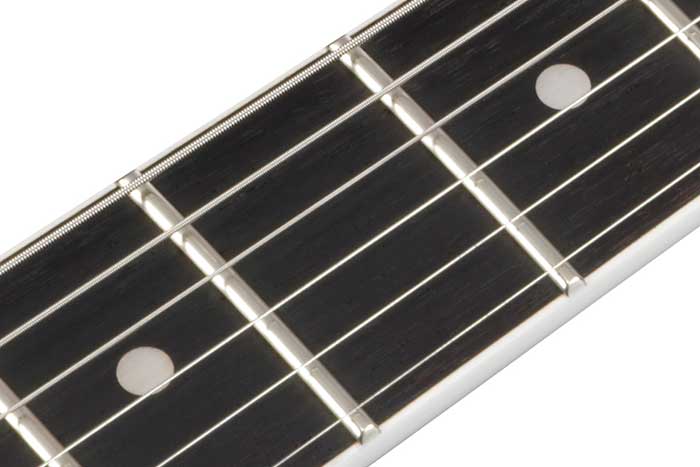

Jumbo frets with Prestige fret edge treatment
The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes. Prestige Fret Edge Treatment guarantees effortlessly fast playing.
Super Wizard 5pc Maple/Walnut neck
The Super Wizard 5pc Maple/Walnut neck provides extra-smooth playing.
Ash body
The Ash body delivers a pleasant brightness and rich sustain.

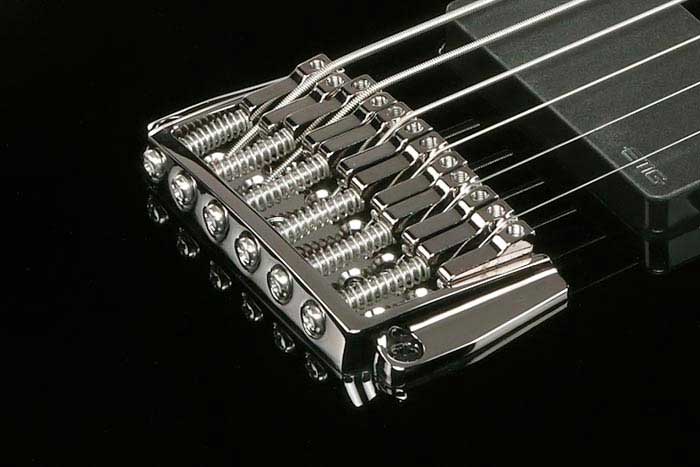

Gibraltar Standard III bridge
The Gibraltar Standard III bridge, featuring a redesigned baseplate and saddles, offers enhanced playing comfort while ensuring optimal string vibration transfer.
DiMarzio® Air Norton™ / The Tone Zone® pickups
A pair of high-output DiMarzio Air Norton™ and The Tone Zone® pickups provides a huge sound with a broad dynamic range.
Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.

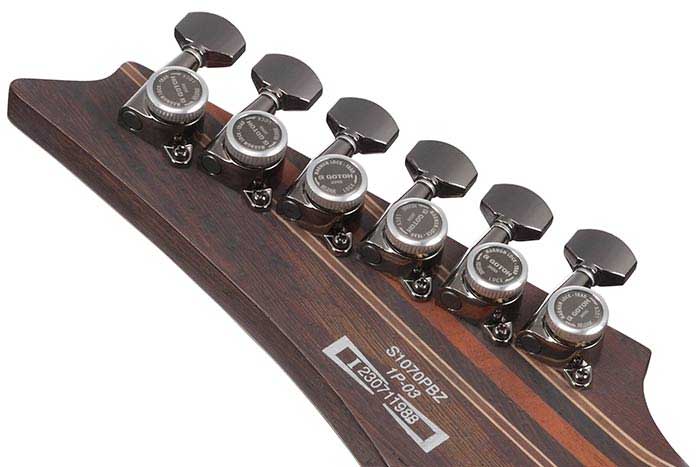

Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
