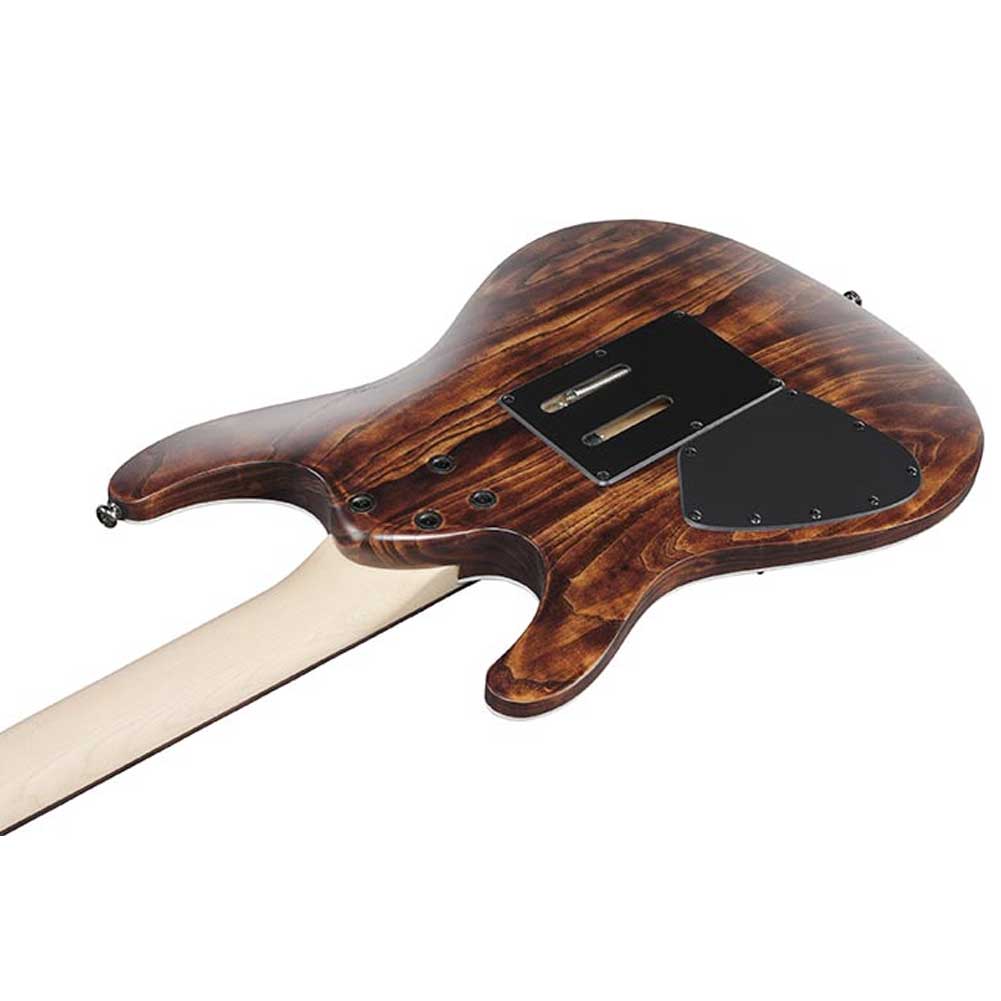

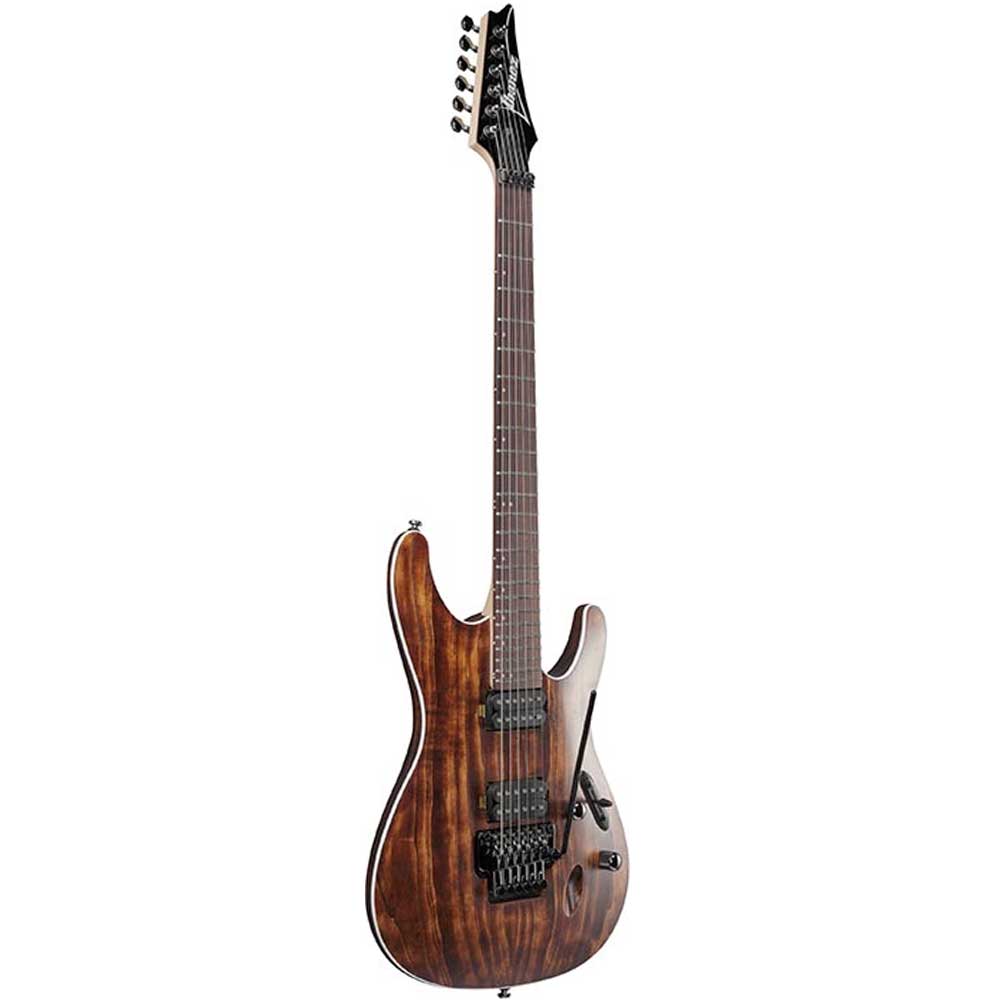

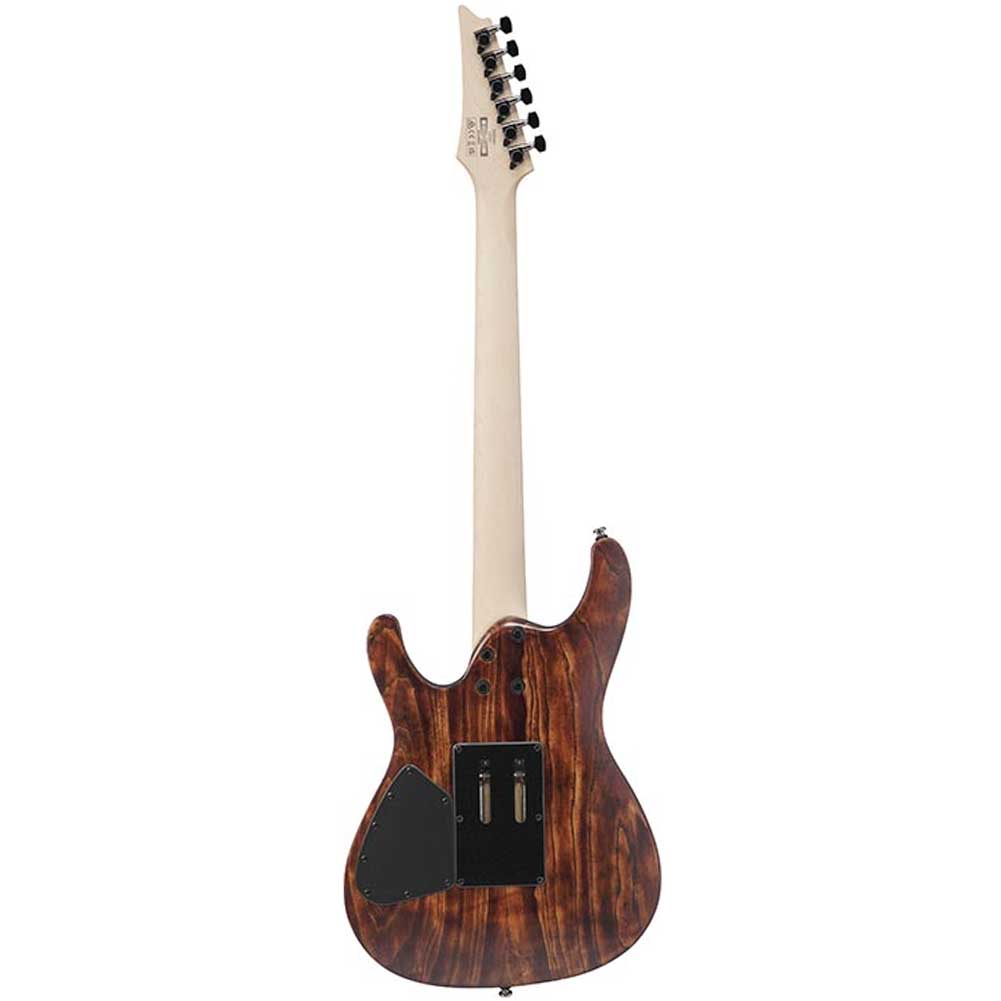

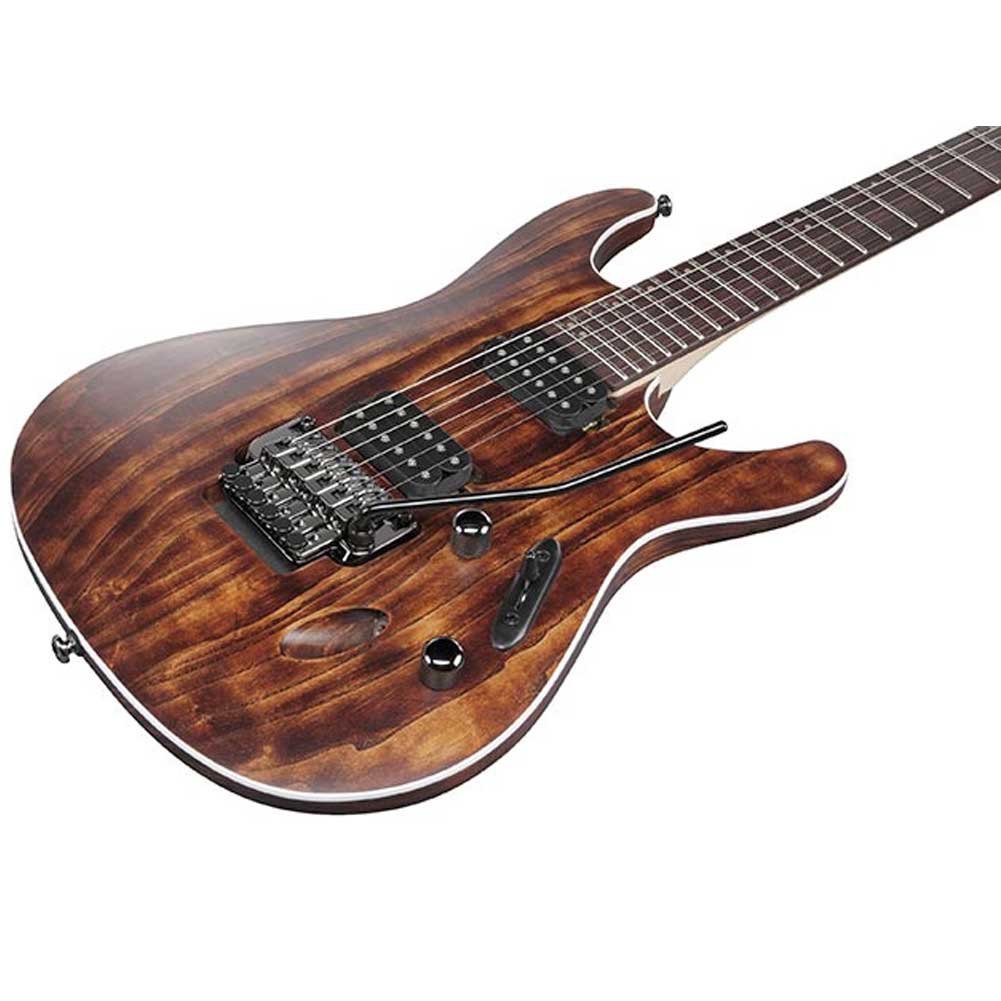

Ibanez S520AH ABS S Standard Electric Guitar 6 String with Gig Bag

Ibanez S520AH ABS S Standard Electric Guitar 6 String with Gig Bag

The cutting edge of Ibanez design, the S series continues to be a marvel of form and function. Its signature body shape – sculpted, lightweight, and mahogany – is stronger and more musically responsive than guitars weighing twice as much. The S series is still a rock ‘n’ roll version of a quick, graceful, and potentially lethal weapon.

S520AH-ABS Antique Brown Stained
S520AH-OBF Cosmic Blue Flat

SPECS
neck type Wizard III Maple neck
top/back/body Ash body
fretboard Rosewood fretboard Off-set white dot inlay
fret Jumbo frets
number of frets 24
bridge Edge-Zero II bridge
string space 10.8mm
neck pickup Quantum (H) neck pickup Passive/Ceramic
bridge pickup Quantum (H) bridge pickup Passive/Ceramic
factory tuning 1E,2B,3G,4D,5A,6E
strings D’Addario® EXL120
string gauge .009/.011/.016/.024/.032/.042
nut Locking nut
hardware color Cosmo Black

NECK DIMENSIONS
Scale : 648mm/25.5″
a : Width 43mm at NUT
b : Width 58mm at 24F
c : Thickness 19mm at 1F
d : Thickness 21mm at 12F
Radius : 400mmR

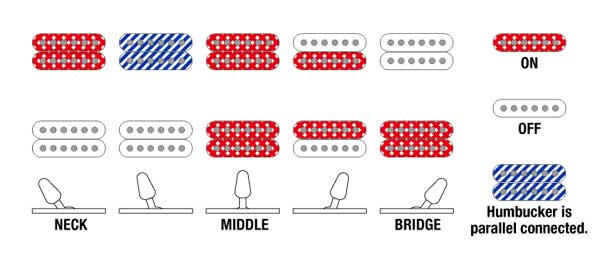

SWITCHING SYSTEM
S520AH’s Switching system diagram

CONTROLS
S520AH’s control diagram

OTHER FEATURES
Recommended Case M300C
Recommended Bag IGB540-BK

Features

Wizard III Maple neck
Ibanez’s thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability and features a two-octave 24-fret fretboard for a wide tonal range.

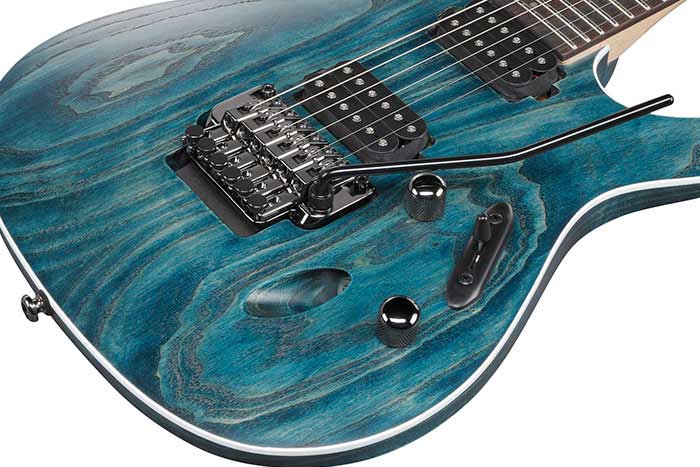

Ash body
The Ash body delivers a pleasant brightness and rich sustain.

Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.

Edge-Zero II tremolo bridge
The Edge Zero II bridge design features a lower profile tremolo for playing comfort and stud lock function for stable tuning.

Quantum H-H pickups
The Quantum pickups have a quick low-end response to picking and are able to capture fast passages with precise note definition, while delivering a full-bodied mid-to-high range.
