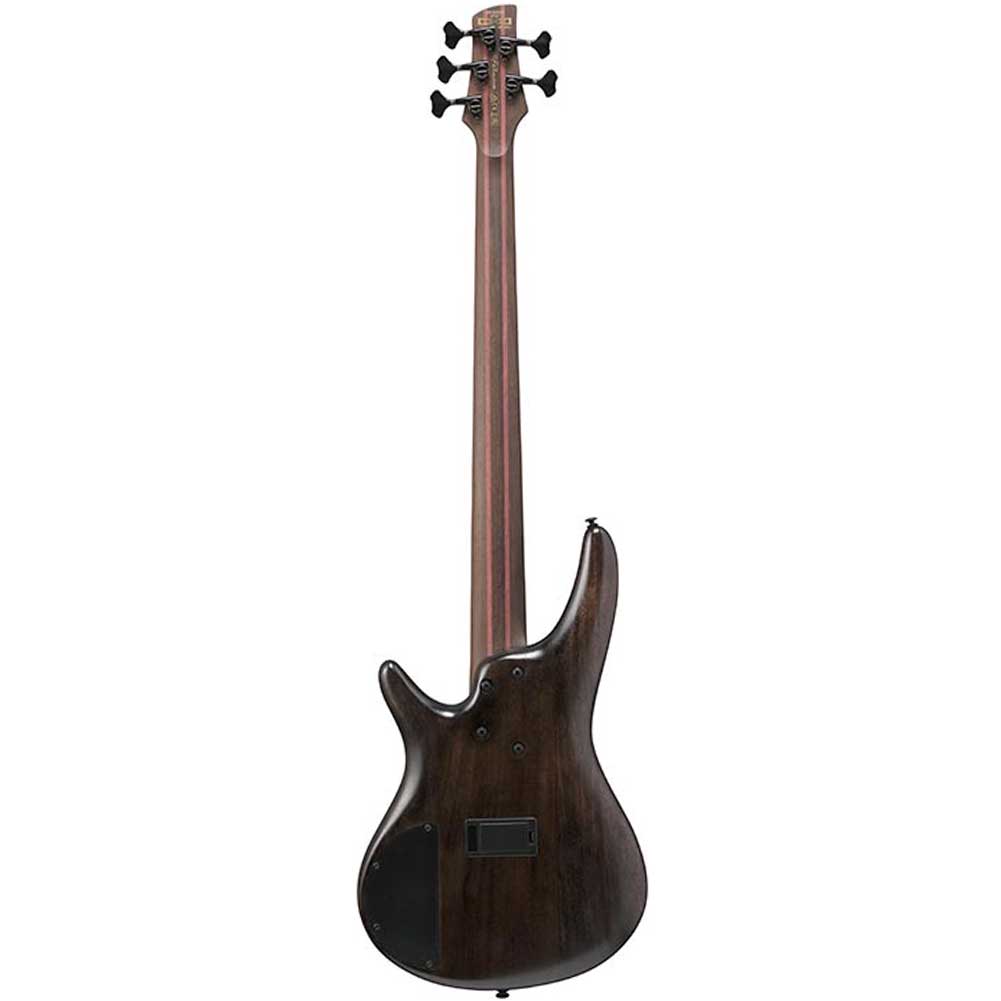

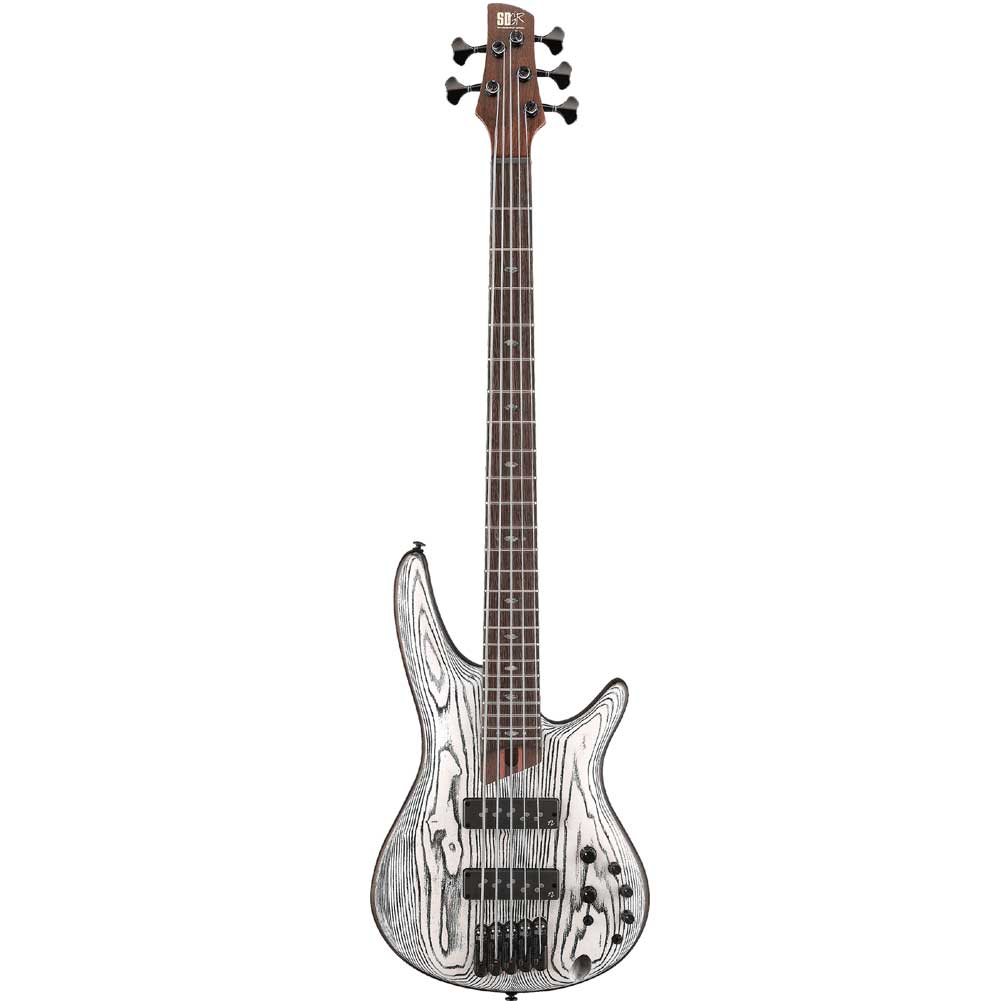

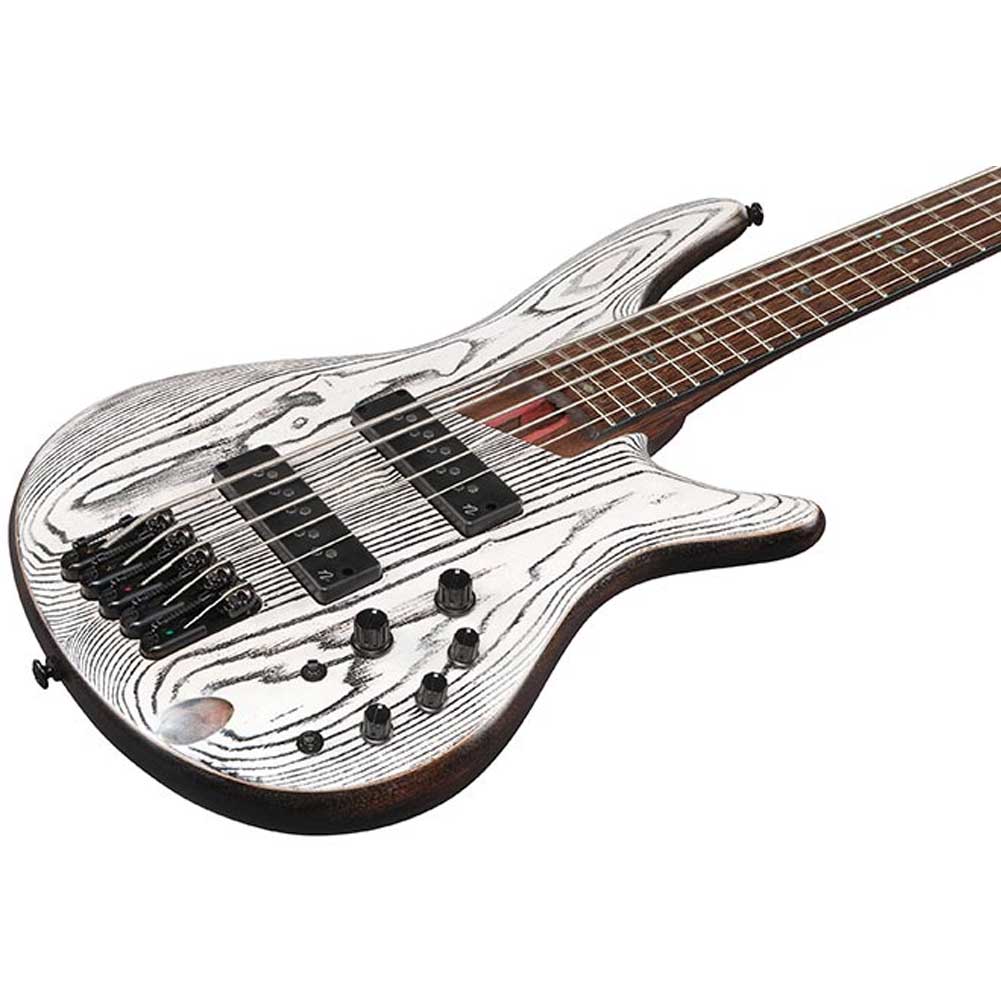

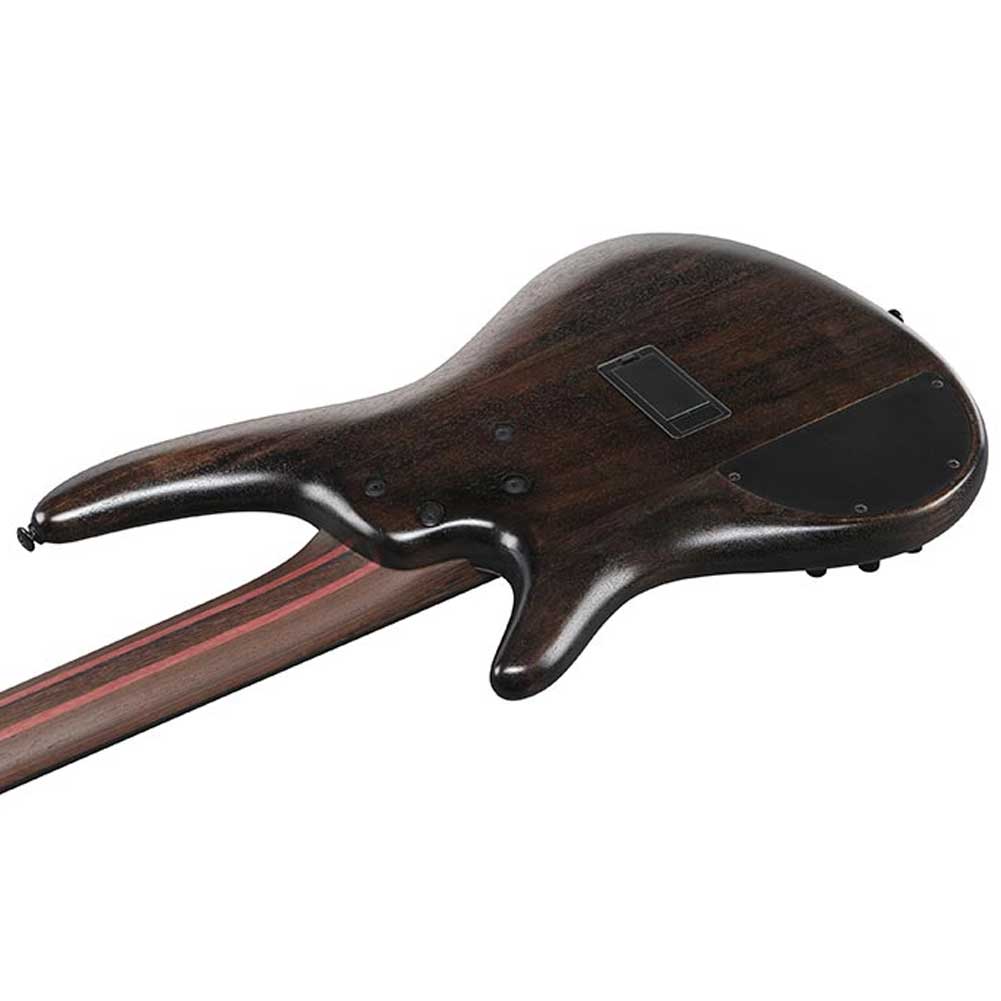

Ibanez SR1325SB SR Premium Bass Guitar 5 Strings with Gig Bag

Ibanez SR1325SB SR Premium Bass Guitar 5 Strings with Gig Bag

Colors
AVL : Aqua Wave Low Gloss
IVF : Icebreaker Wave Flat

SR1325SB Premium
SPECS
neck type Atlas-55 pc Panga Panga/Purpleheart neck w/KTS™ TITANIUM rods
top/back/body Sandblasted Ash top African Mahogany body
fretboard Bound Panga Panga fretboard Abalone oval inlay
fret Medium frets Premium fret edge treatment
number of frets 24
bridge MR5S bridge
string space 16.5mm
neck pickup Nordstrand™ Big Break neck pickup Passive
bridge pickup Nordstrand™ Big Break bridge pickup Passive
equalizer Ibanez Custom Electronics 3-band EQ w/EQ bypass switch (passive tone control on treble pot), 3-way Mid frequency switch
factory tuning 1G,2D,3A,4E,5B
strings D’Addario® EXL165 + .130
string gauge .045/.065/.085/.105/.130
nut Graph Tech® BLACK TUSQ XL® nut
hardware color Black

NECK DIMENSIONS
Scale : 864mm/34″
a : Width 45mm at NUT
b : Width 68mm at 24F
c : Thickness 19.5mm at 1F
d : Thickness 21.5mm at 12F
Radius : 305mmR

CONTROLS
SR1325SB’s control diagram
DESCRIPTION
With the bass held in the playing position, there are three small knobs located towards the lower edge of the body. Directionally, from the lower bout towards the neck these knobs control treble boost/cut, mid boost/cut, and bass boost/cut knob. Above these are two larger knobs closer to the bridge. Of these, the knob closest to the end of the body is the pickup balance, and the knob located towards the neck is the volume knob. There are two switches on this bass. The switch closest to the lower edge of the body is a 3-way mid frequency switch. When the switch is in neck position, mid boost peak is at 250Hz. When the switch is in center position, mid boost peak is at 450Hz. When the switch is in bridge position, mid boost peak is at 700Hz. The other switch closer to the middle of the bass is the EQ bypass switch. When the switch is in neck position, the EQ is off. When the switch is in bridge position, EQ is on. When EQ is off, the treble knob works as a passive tone control knob.

FREQUENCY RESPONSE
SR1325SB’s EQ curve diagram
DESCRIPTION
The bass boost/cut frequency curve has a peak at 20 Hz, the variable width becomes smaller toward the high range, and the variable width becomes zero at about 1000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve draws a mountain-shaped curve with a peak at around 10,000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±15 dB. The mid-boost/cut frequency curve creates a bell-shaped curve that peaks at a specific frequency, and the variable range becomes zero near 20 Hz and around 10,000 Hz. The frequency peak can be switched to 700, 450 and 250 Hz. The variable range of the peak frequency is approximately ±15 dB.

OTHER FEATURES
Recommended Case MB300C
Gig bag included
Gotoh® machine heads

Features

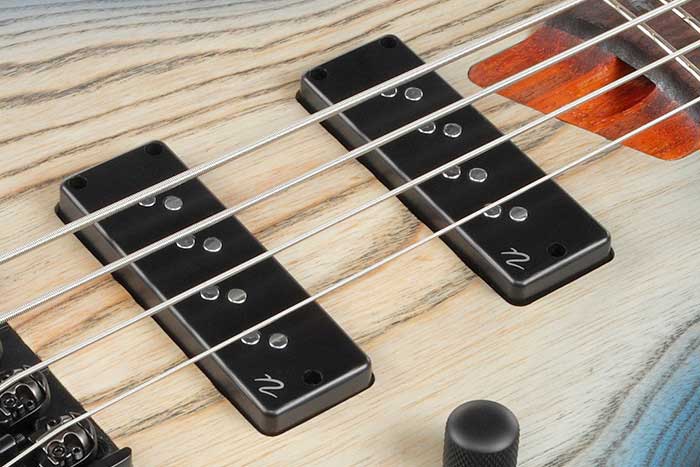

Nordstrand™ Big Break pickups
Nordstrand™ “Big Break” pickups cram a meaty split coil into a soapbar-style pickup, producing a full-bodied, powerful, aggressive tonal texture, while still retaining the clarity that’s characteristic of single coil tone with noiseless performance.

Sandblasted Ash top / African Mahogany body
The Ash top with African Mahogany body delivers a pleasant brightness and rich sustain.

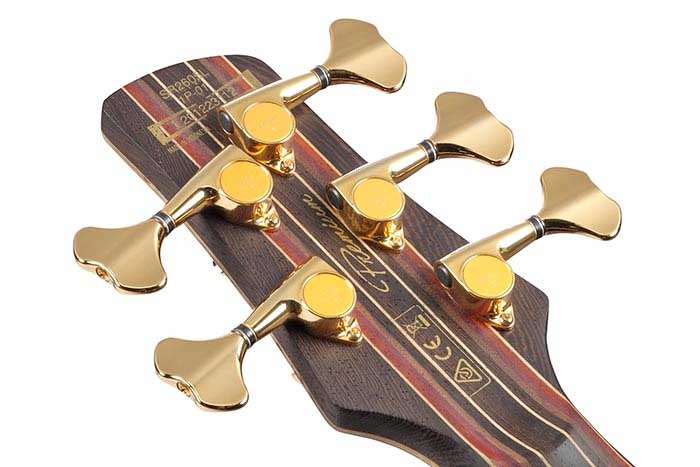

Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.

Atlas 5pc Panga Panga/Purpleheart neck with KTS TITANIUM rods
The Atlas 5pc Panga Panga/Purpleheart neck provides a well-balanced note attack and tone with rich sustain.The neck is constructed with KTS™ TITANIUM reinforcement rods, increasing its stability and adding sustain.

Premium Fret Edge Treatment
Premium Fret Edge Treatment offer super smooth,comfortable performance.

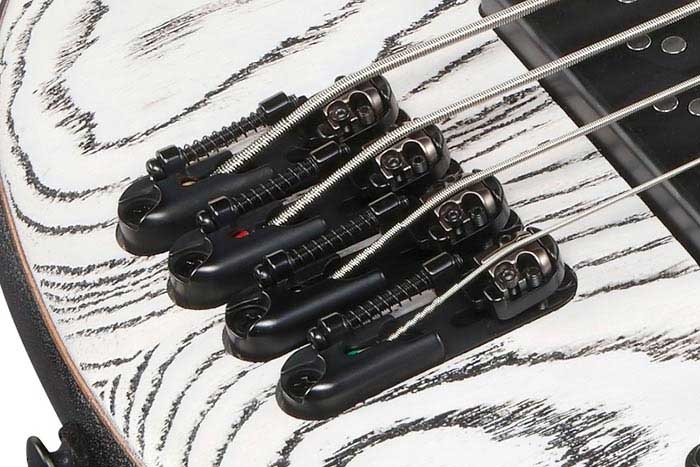

MR5S bridge
The MR5S bridge has adjustable saddles for variable string spacing by +/- 1.5mm, answering every bassist’s specific string spacing needs.

Ibanez Custom Electronics 3-band EQ w/EQ bypass switch & Mid frequency switch
Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.
Precision tonal control, including a switch to choose passive-only operation. When the EQ bypasses activated, the treble tone control knob becomes the global tone control for the passive circuit.

Panga Panga fretboard
Panga Panga features a beautiful wood grain which produces a tight low and mid range, along with a sharp attack on high end.
