Versatile and suitable for a wide range of musical styles and genres, the Fusion NX is especially well suited for low-to-medium gain settings, making it ideal for genres such as blues, pop, funk, reggae, jazz, fusion, and classic rock where extreme high gain settings are usually not needed. The Fusion exhibits a warm, rich and full midrange with its chambered Alder body and Indian Rosewood fretboard. The versatile HSH pickup configuration provides superb classic humbucking and single coil sounds that are clear and articulate to convey the nuances of your playing style.
MEASUREMENTS
Width: 315 mm/12.4″
Length: 800 mm/31.5″
Thickness: 42 mm/1.65″
Long Scale: 25.5”
Short Scale: 25″
String spread at nut: 35 mm/1.37″
String spacing at bridge: 10.5 mm/.41″
Neutral fret: 0
GENERAL
Bolt-On Construction with new sculpted neck joint heel
Chambered Alder Body with Arm and Torso Carves
Solid Maple Top with 4A Flame Maple or Quilt Maple veneer

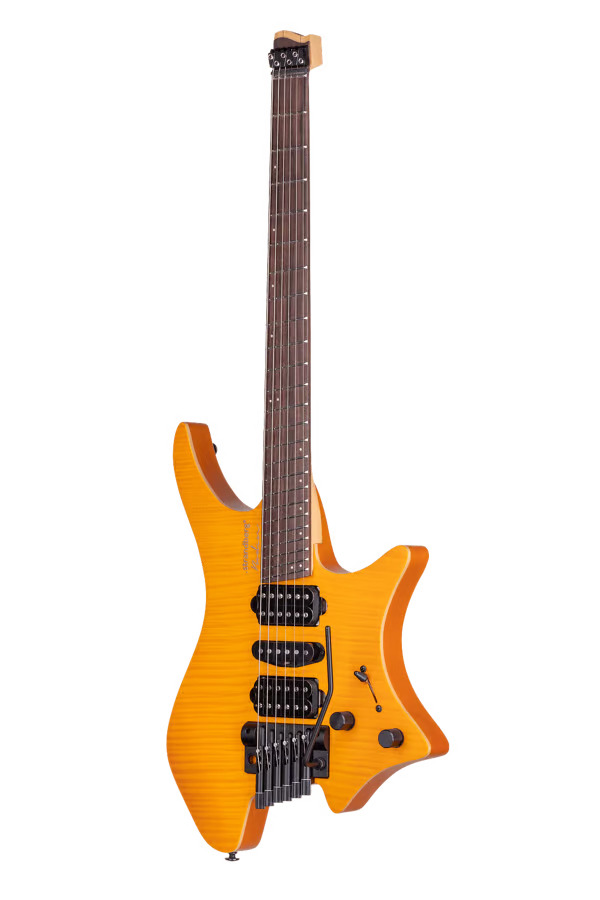

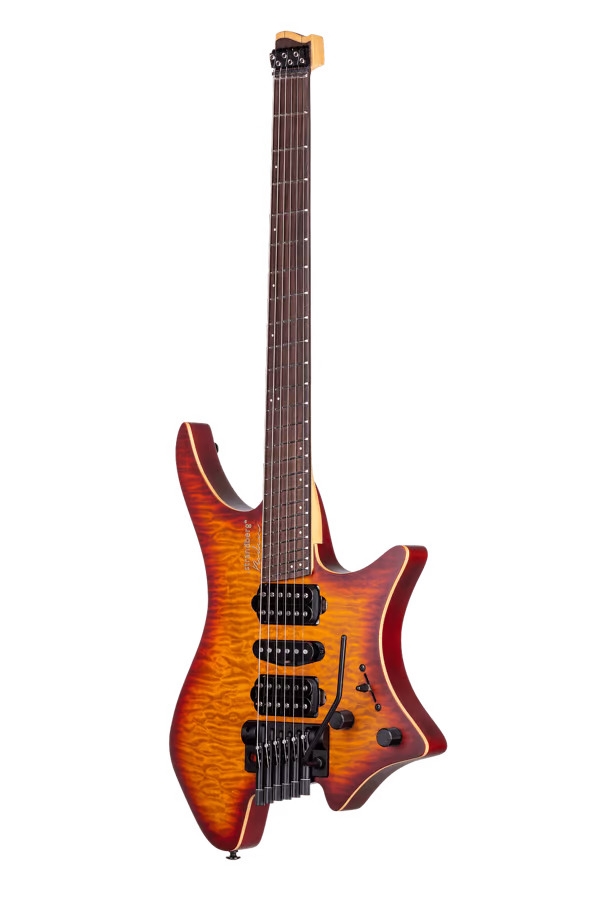

Available Finishes: Amber Yellow for Flame, Bonfire Red for Quilt
Approximate Weight: 2.3kg / 5 lbs +/- 10%
Manufactured in Indonesia
HARDWARE
.strandberg* EGS Pro Rev7 tremolo system & string locks
Black anodized hardware
Original Luminlay™ Green Side Dots
Original Luminlay™ Green Inlays
NECK & FRETS
Maple neck – Quartersawn, Carbon Fiber reinforced
EndurNeck™ Profile
Indian Rosewood Fretboard
20” Fretboard Radius
24 Frets
Jescar 51100 Stainless Steel Fretwire (57110 for zero fret)
D’Addario NYXL 10-46 strings
Standard tuning EADGBE
SONIC PROFILE
H-S-H Pickup Configuration
Neck: Suhr SSV Neck
Middle: Suhr V60LP single-coil
Bridge: Suhr SSV+ Bridge
5-Way Pickup Selector
>Neck Series Humbucking
>Neck Outer Coil + Middle in parallel
>Neck Outer Coil + Bridge Outer Coil in parallel
>Middle + Bridge Inner Coil in parallel
>Bridge Series Humbucking
Master Volume + Master Tone
