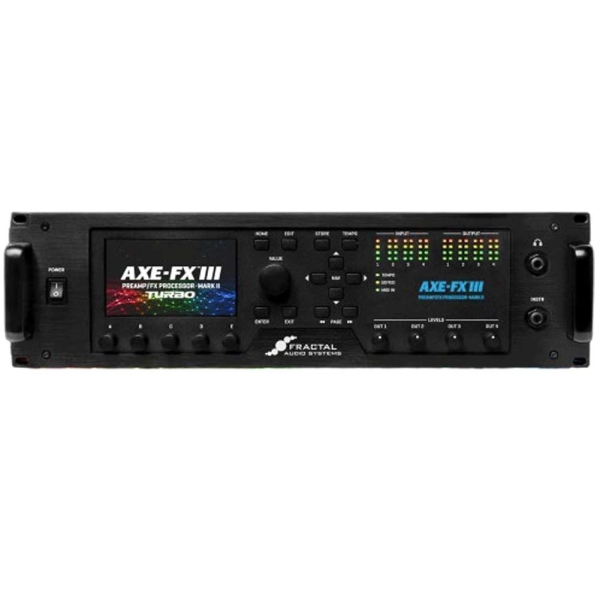

Fractal Audio Systems Axe-Fx III MARK II TURBO Processor FAS-026-2T

Fractal Audio Systems Axe-Fx III MARK II TURBO Processor FAS-026-2T

The Award-Winning Axe-Fx III Just Got Even Better!
The new Axe-Fx III Mark II is the latest in a line of legends—the world’s most powerful all-in-one processor for guitar, bass, and other instruments. Featuring our latest amp modeling technology, thousands of UltraRes speaker cab simulations, and industry-leading effects, the Axe-Fx III has more power and features than any guitar processor ever created. In comparison to the original, the Mark II features the following upgrades:

• New Turbo DSP option provides a 25% higher clock speed allowing for more complex presets.
• New IPS Display offers improved contrast and viewing angles, plus more vivid colors.
• Adjustable RGB LEDs let you set the color and brightness of the front panel logo.
• Double the preset memory = space for 1024 presets.
• Increased flash memory for future updates.

The Most Powerful Axe-Fx Ever
Unprecedented Power
The original Axe-Fx upended the industry by being the first device for musicians to put a military/industrial-grade DSP into a consumer product. Leveraging the power of this DSP allowed detail and realism that no other product had previously achieved. The Axe-Fx II expanded on this concept by putting two of those same DSPs to work. Continuing the legacy of this philosophy the Axe-Fx III harnesses the power of no fewer than four separate processors.

Two 1.25 GHz, floating-point “Keystone” Digital Signal Processors (DSPs) comprise the main audio engine*. These processors are the most powerful DSPs available delivering over twice the performance of the DSPs used in our previous generation products. To feed these advanced processors we coupled 4Gb of blazing fast PC1600 DDR3 memory, hundreds of Mb of FLASH memory, a proprietary FPGA and a rich set of peripherals.

The stunning color display is controlled by a dedicated graphics processor while USB traffic and user interface tasks are handled by a 500 MHz, 16-core microcontroller providing smooth operation and robust USB performance.
*2×1.25 GHz is the speed of the optional Turbo DSP module. The standard DSP module runs at 2×1.0 GHz.

CPU Performance Comparison*
Axe-Fx III Benchmarks

A Powerful Interface Makes the Axe-Fx III the Most Intuitive Product We’ve Ever Created

Dynamic Color Display
Controlling all this power requires an interface to match. A large 800×480 color display features 30 times the resolution of our previous model. Custom designed to provide more brightness and contrast than “off-the-shelf” displays, this new display is optimized for readability in the most difficult conditions.

Driving the display is a dedicated graphics accelerator delivering dynamic, animated displays. Unlike the mostly static displays in other products, the displays in the Axe-Fx III feature moving knobs, meters, graphs and other dynamic content giving the user valuable visual feedback at a glance.

Sleek Front Panel
Five push-encoders plus a main encoder allow rapid data entry and parameter control. Editing is fast and easy with minimum keystrokes needed to access and edit parameters. A stack-based menu system is quick and intuitive with the most-used menus no more than a couple button pushes away.

Color Display and Five Push Encoders
Placement of the knobs below the display gives direct access to five on-screen parameters at once, plus five “push” functions at the same time. Dialing in sounds has never been faster or easier.

I/O Monitoring
A front panel LED meter bridge provides instant visual status for the inputs and outputs. The effects layout grid also features an intuitive “Meters” display which shows the input and output levels of each effect block at a glance. Additionally a dedicated Meters menu shows all analog and USB I/O levels for quick and easy troubleshooting of connection mistakes.

I/O Meters
Axe-Fx III Grid Meters Axe-Fx III Rear Panel
DIMENSIONS: Width: 19.00in (482.6mm) Height: 5.16in (131.1mm) Depth: 11.530in (292.87mm) including front handles and rear jacks Weight: 15 lbs 2.4 oz (6.87 kg)

Abundant I/O Provides Ultimate Flexibility

Expanded I/O
Vastly expanded input and output resources provide for ultimate flexibility. The Axe-Fx III features two instrument inputs: one on the front and one on the back with auto-switching capability. Inserting a plug into the front input jack automatically switches the unit to front input operation. Remove the plug and the unit switches to the rear input. Connect your wireless to the rear input and then plug into the front input to tune (using the new tuner display) or make quick adjustments. Unplug and you’re back to jumping around on stage with your wireless. The front input features our Auto-Z technology which simulates the input impedance and subsequent pickup loading of typical stomp boxes.

An additional six analog inputs are available: one pair of balanced XLR/1/4″ combo-jacks plus two pairs of balanced 1/4″ inputs.

Analog output capabilities are similarly impressive with four fully independent stereo pairs: Output 1 features both XLR and 1/4” jacks for connection to FOH, monitors or other line level devices. Output 2 features a second set of XLR jacks and outputs 3 and 4 each offer a pair of Humbuster™ 1/4” jacks. Outputs 3 and 4 are designed for unity gain applications such as “the four cable method” or dual stereo inserts and can also be used as general-purpose outputs. Digital audio I/O is comprised of AES and SPDIF inputs and outputs. Clocking options include internal or external via SPDIF/AES input.

Two expression pedal inputs allow for expressive real-time control of parameters. Our new FASLINK II™ provides phantom power and bidirectional communications with the upcoming FC-6 and FC-12 foot controllers over standard XLR microphone cables. MIDI In, Out and a dedicated Thru provide easy integration with other gear in large stage rigs. Extensive MIDI support along with a dedicated MIDI block allows the Axe-Fx III to be the central hub of a MIDI-based setup.

Input & Output Blocks
Routing flexibility is enhanced by unconstrained placement of input and output blocks anywhere in the routing grid. Want to insert different outboard devices at different parts of the signal path? No problem. Simultaneously process discrete stereo output for acoustic and electric guitars? Easy. Send stereo to front-of-house, plus a true “Wet-Dry-Wet” on stage while recording a DI for re-amping later? No problem! Each output pair also has its own dedicated front panel LEVEL knob for convenient control.

Input and Output Blocks
Grid Blocks Zoomed Out
8×8 USB with Superior Performance
The Center of your Music Workstation
A 16-core, 500 MHz microcontroller provides 16 channels of flawless USB audio (8 in, 8 out) allowing the Axe-Fx III to be the center of your music workstation. The audiophile-grade signal path components and converters provide better audio performance than most dedicated USB audio interfaces. With 8×8 channels you can record multiple tracks of processed audio, DI signals, etc., while monitoring backing tracks, auditioning stereo reamps in real-time, and more. A USB audio sound source can even be placed on the grid with its own dedicated block. Windows 7/8/10 drivers are included, and the Axe-Fx III requires no driver on a Mac running 10.7.4 or newer.

USB In (from Axe-Fx III to Computer)

1+2: Output 1
3+4: Output 2
5+6: Input 1 (DI for reamping)
7+8: Input 2 (for general use)
USB Out (from computer to Axe-Fx III)

1+2: Routed to physical Output 1 L+R
3+4: Routed to physical Output 2 L+R
5+6: Routed to the Grid via INPUT 1 block when its source is set to USB
7+8: Routed to the Grid via the dedicated INPUT USB block
