Ibanez AZ2203N ATQ AZ Prestige Electric Guitar with Hardshell 6 String

Ibanez AZ2203N ATQ AZ Prestige Electric Guitar with Hardshell 6 String

SPECS
neck type AZ Oval CS-TECH WOOD Roasted Maple neck
top/back/body Alder body
fretboard Rosewood fretboard Mother of Pearl dot inlay
fret Jumbo Stainless Steel fretsPrestige fret edge treatment
number of frets 22
bridge Gotoh T1502S bridge
string space 10.5mm
neck pickup Seymour Duncan Fortuna (S) neck pickup Passive/Alnico
middle pickup Seymour Duncan Fortuna (S) middle pickup Passive/Alnico
bridge pickup Seymour Duncan Fortuna (S) bridge pickup Passive/Alnico
factory tuning 1E,2B,3G,4D,5A,6E
strings D’Addario EXL110
string gauge .010/.013/.017/.026/.036/.046
nut Bone nut
hardware color Chrome

NECK DIMENSIONS
Scale : 648mm/25.5″
a : Width 42mm at NUT
b : Width 56.4mm at 22F
c : Thickness 20.5mm at 1F
d : Thickness 22.5mm at 12F
Radius : 228mmR to 305mmR COMPOUND

SWITCHING SYSTEM
AZ2203N’s Switching system diagram

CONTROLS

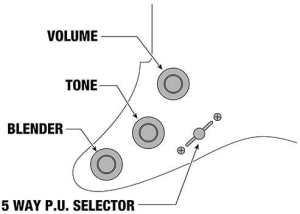

AZ2203N’s control diagram

OTHER FEATURES
Recommended Bag IGB724-BK
Gotoh Magnum Lock machine heads w/H.A.P.
Luminlay side dots
Fretboard Radius: 228mm @nut to 305mm @22nd fret Compound
Blender
Non-recessed bridge cavity
Hardshell case included

Features

With the simple turn of the blend knob, you can incorporate just the right amount of each pickup in a given position to achieve your desired sound.

Seymour Duncan Fortuna S-S-S pickups
Seymour Duncan Fortuna Pickups feature a moderate output and natural clean voicing which accurately reflect subtle playing nuances. From treble to bass, the overall tonal balance is evenly adjusted and works well with various effect pedals.

Alder body
The Alder body delivers a well-balanced bright tone, enriched resonance and sustain.

Gotoh T1502S tremolo
The T1502S tremolo bridge features steel saddles and a steel tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.

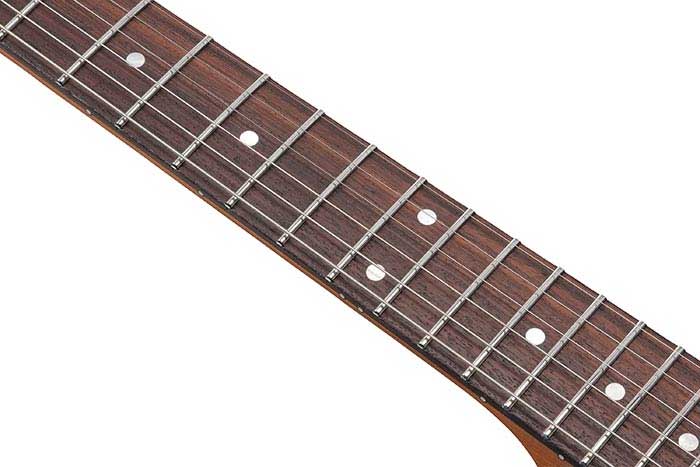

Compound Radius Fretboard (228mm to 305mm)
Offering the best of both worlds, the digitized compound radius fretboard of the AZ-N is built to enhance both smooth chording and lead work in the upper register.

5 tremolo springs
Five tremolo springs allow string vibration to be more efficiently transferred to the guitar body.

Non-recessed bridge cavity
While the AZ series features a recessed bridge cavity for fluid and dynamic tremolo action, this model has non-recessed bridge cavity. The direct contact between bridge plate and the guitar body provides better resonance and helps facilitate subtle nuances in playing dynamics.

Oval C S-TECH WOOD Roasted Maple neck
S-TECH special roasted treatment increases the wood’s stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.

Gotoh Magnum Lock machine heads w/H.A.P.(Height Adjustable Post)
GOTOH MAGNUM LOCK machine heads have an established reputation for tuning stability. Its H. A. P® (Height Adjustable Post). system allows for the adjustment of string posts for the appropriate tension of each string.

Super All Access Neck Joint
The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.

Luminlay side dot inlays
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
