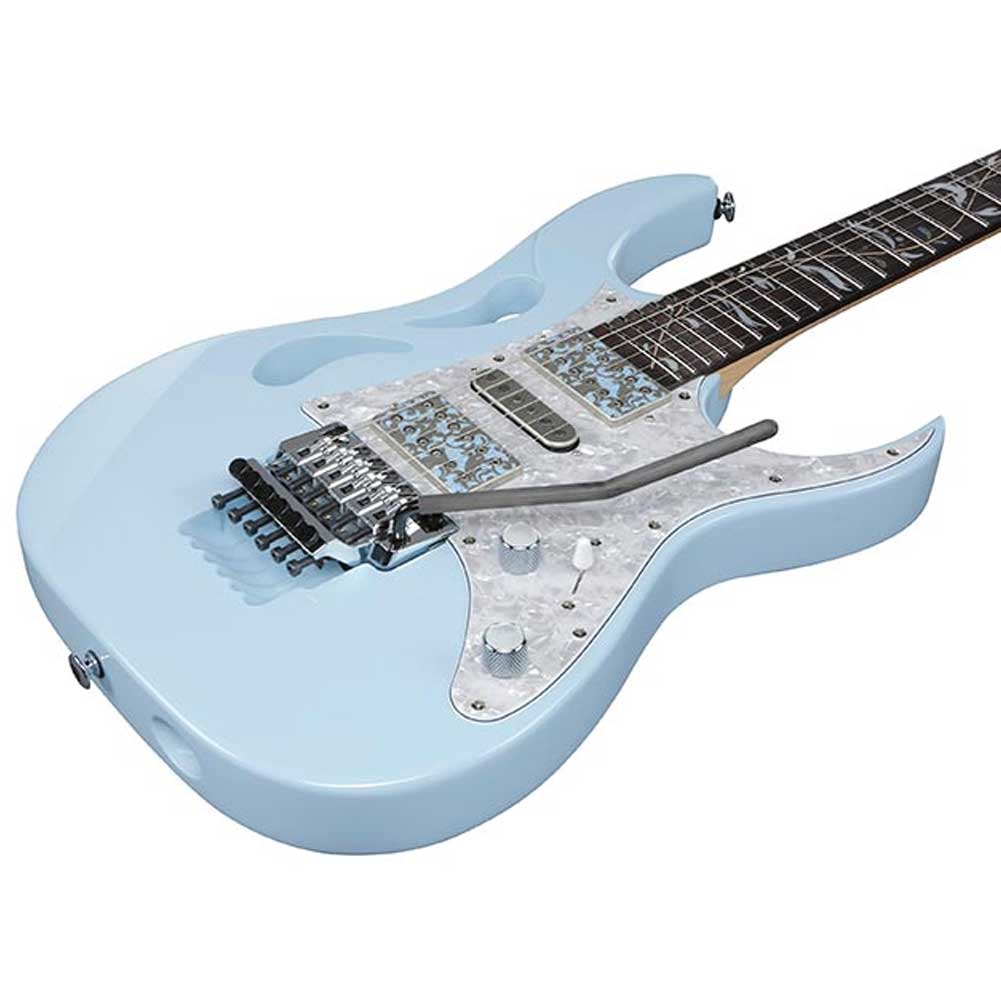

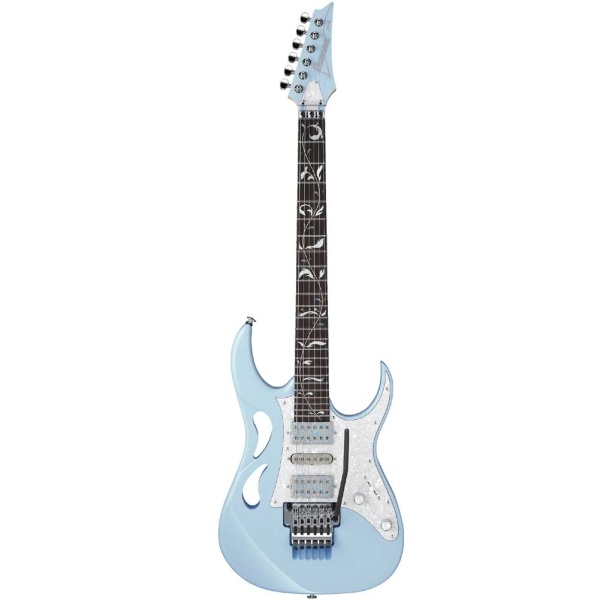

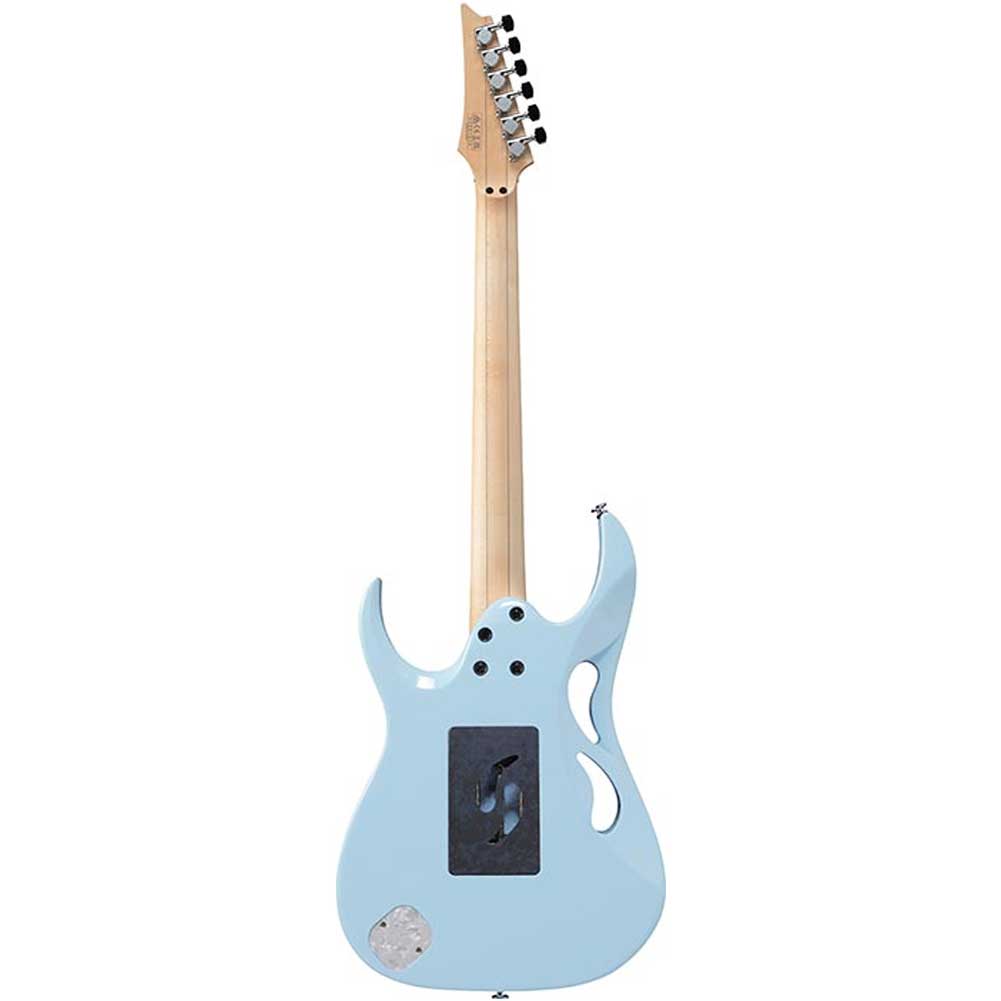

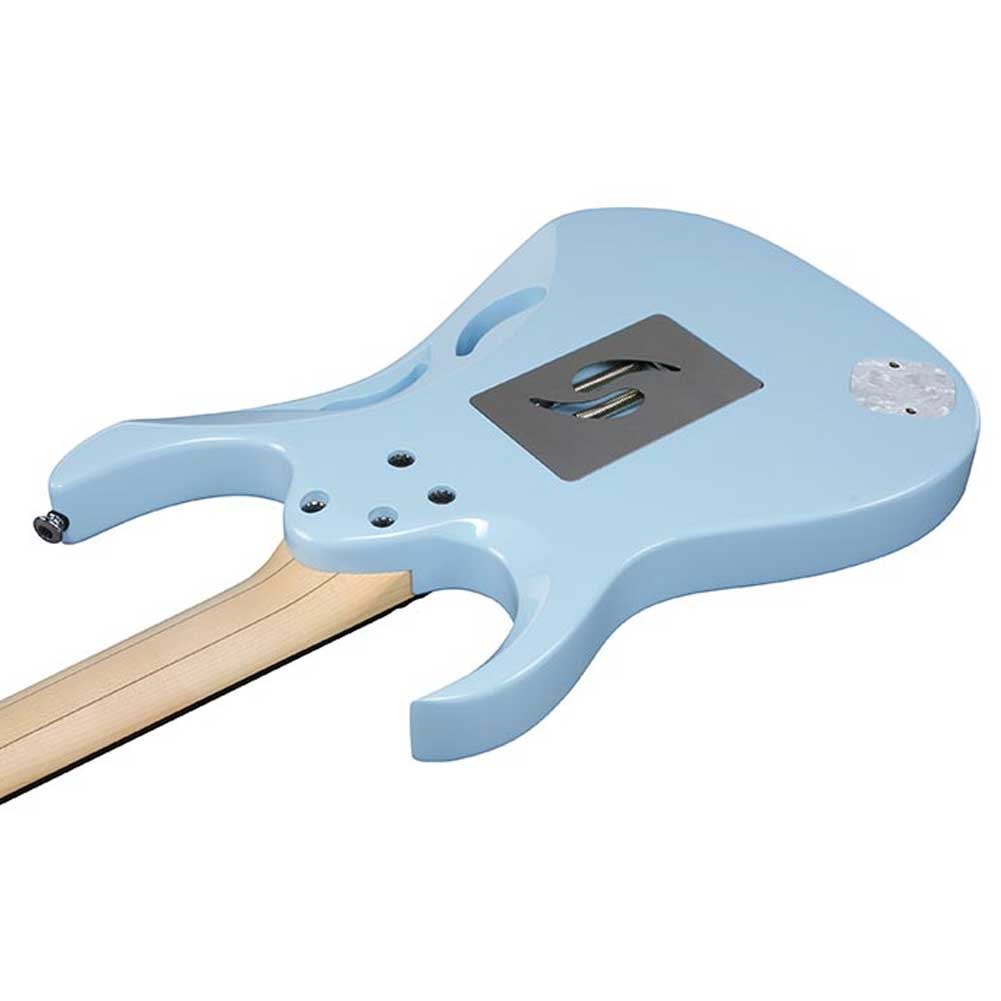

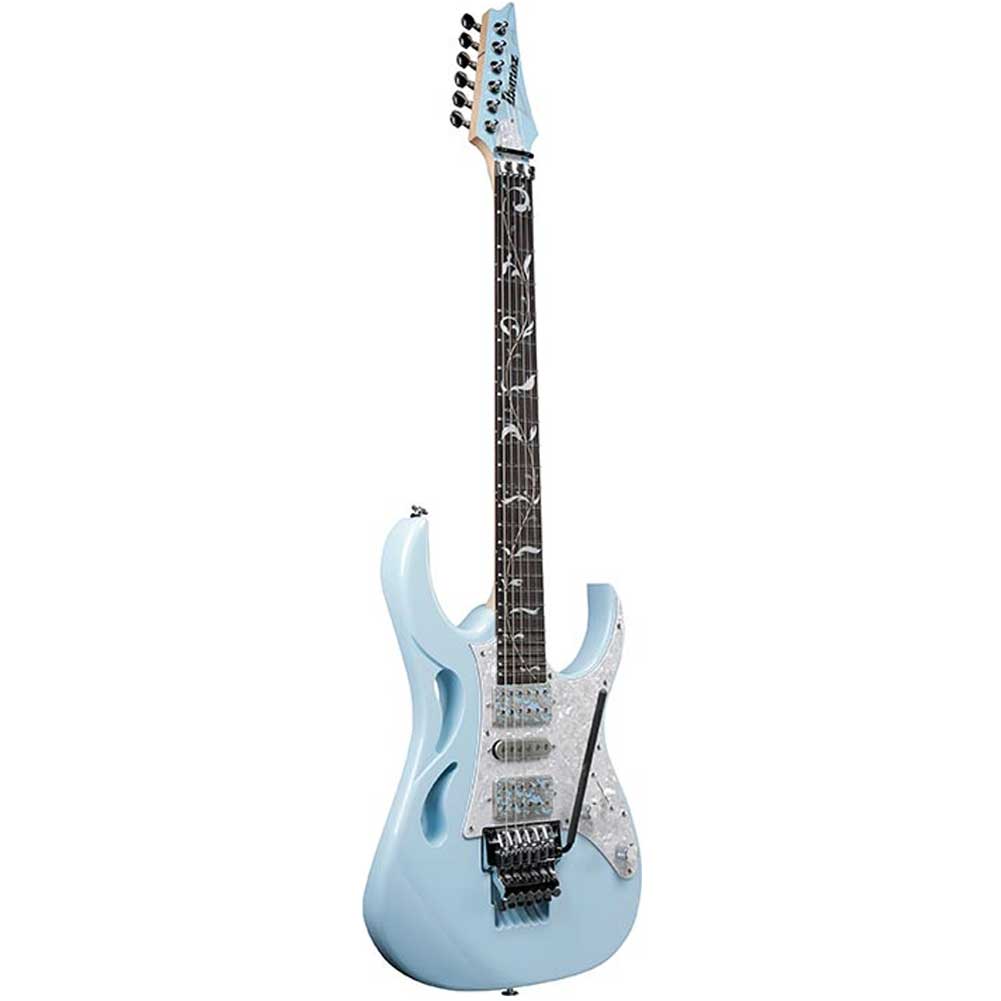

Ibanez PIA3761C BLP Steve Vai Signature series Prestige Electric Guitar with Hardcase

Ibanez PIA3761C BLP Steve Vai Signature series Prestige Electric Guitar with Hardcase

SPECS
neck type PIA 5pc Maple/Walnut neck
top/back/body Alder body
fretboard Rosewood fretboard PIA Blossom inlay
fret Jumbo Stainless Steel frets Prestige fret edge treatment
number of frets 24
bridge Edge bridge
string space 10.8mm
neck pickup DiMarzio UtoPIA (H) neck pickupPassive/Ceramic
middle pickup DiMarzio UtoPIA (S) middle pickupPassive/Alnico
bridge pickup DiMarzio UtoPIA (H) bridge pickupPassive/Ceramic
factory tuning 1E,2B,3G,4D,5A,6E
strings D’Addario EXL120
string gauge .009/.011/.016/.024/.032/.042
nut Locking nut
hardware color Chrome

NECK DIMENSIONS
Scale : 648mm/25.5″
a : Width 43mm at NUT
b : Width 58mm at 24F
c : Thickness 18mm at 1F
d : Thickness 20mm at 12F
Radius : 430mmR

SWITCHING SYSTEM
PIA3761C’s Switching system diagram

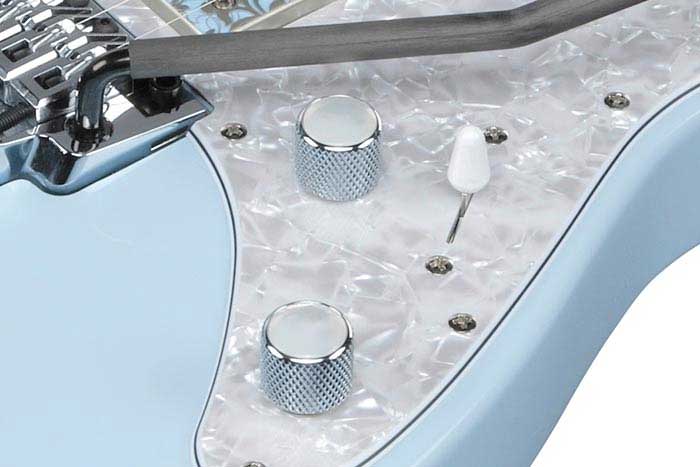

CONTROLS
PIA3761C’s control diagram

OTHER FEATURES
Gotoh machine heads
High-pass filter on volume control (push/pull)
Luminlay side dots
Hardshell case included
Ultralite Tremolo Arm included

Features

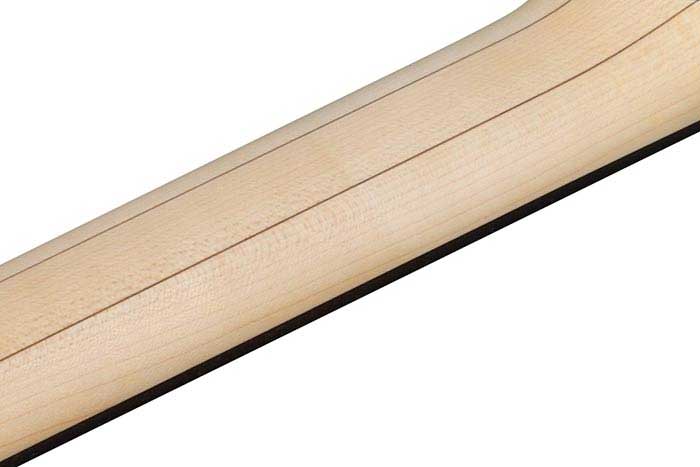

5pc Maple/Walnut neck
The 5pc Maple/Walnut neck provides tonal clarity and superior attack.

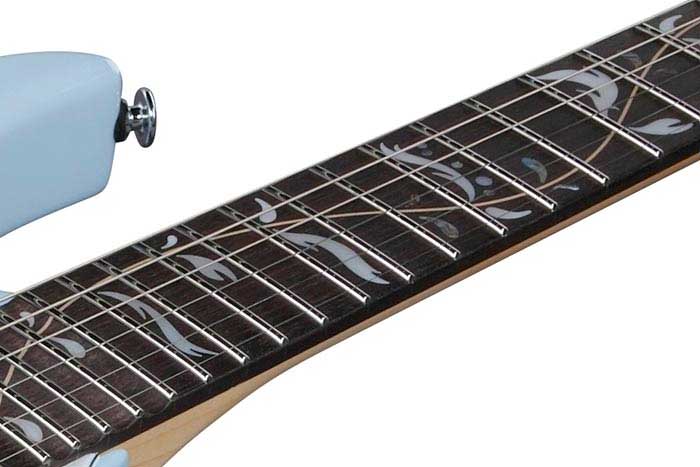

Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

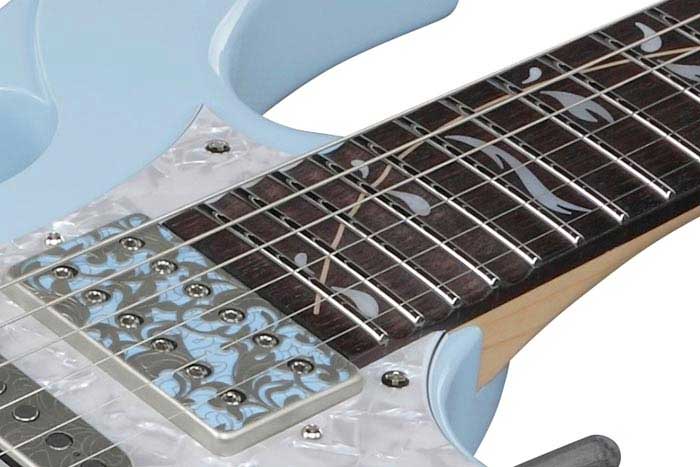

PIA Blossom inlay
The newly designed PIA Blossom inlay is gorgeous, prominent, and elegantly imparts Steve Vai’s trademark style and artistic vision.

Scalloped Fingerboard on 21-24 Frets
For easier high note bending and tapping.

Alder body
The Alder body delivers a well-balanced bright tone, enriched resonance and sustain.

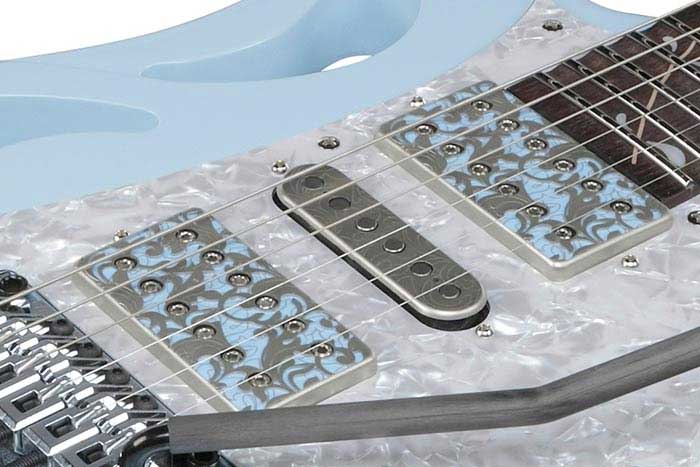

DiMarzio UtoPIA pickups
Based on Steve’s tonal preferences, DiMarzio UtoPIA pickups are voiced for smoother highs, scooped mids and a more pronounced low-end. DiMarzio® UtoPIA™ pickups incorporate beautiful aesthetics and design elements meant to complement the cosmetic features of the guitar.

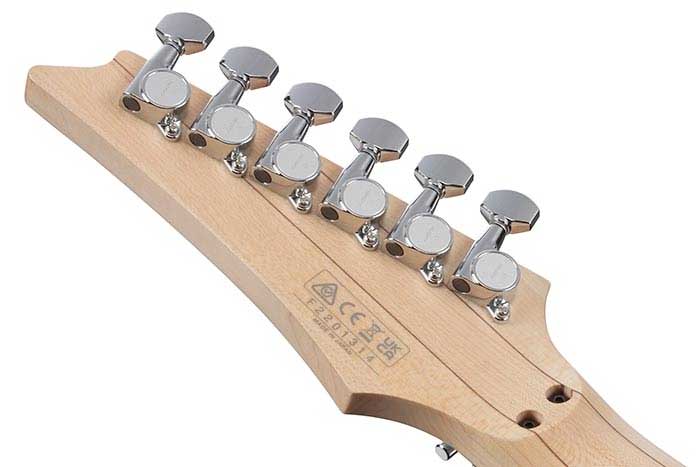

Gotoh machine heads
Gotoh machine heads provide super precision, smooth feel, and minimal back lush.

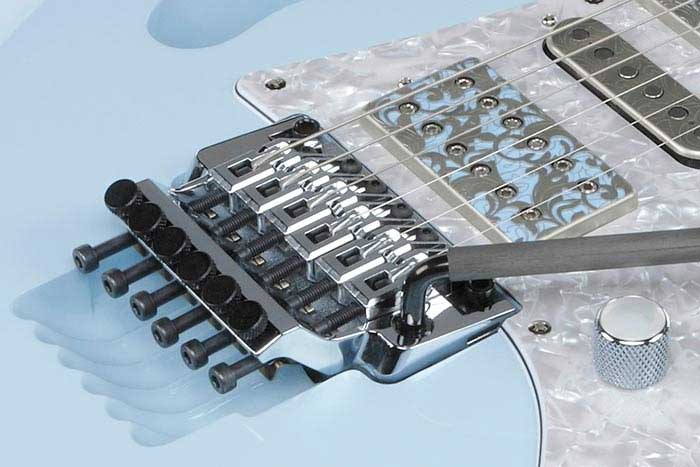

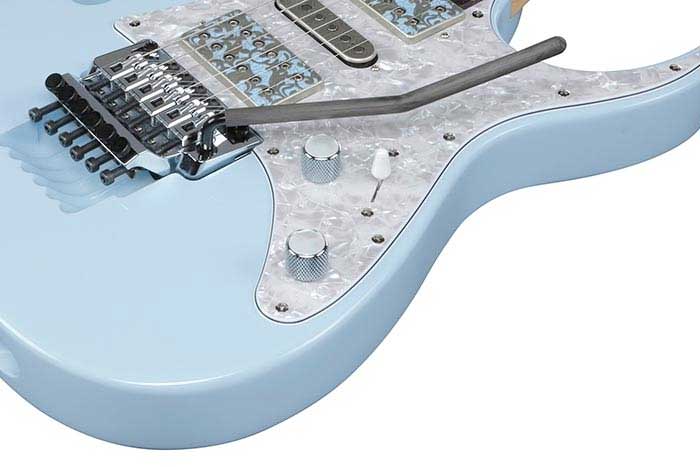

Edge tremolo
The masterpiece Edge bridge offers exceptional tuning stability, precise intonation adjustment, and playing comfort.

High-pass filter on volume control (push/pull)
A high pass filter on the volume pot maintains highs at low volumes.

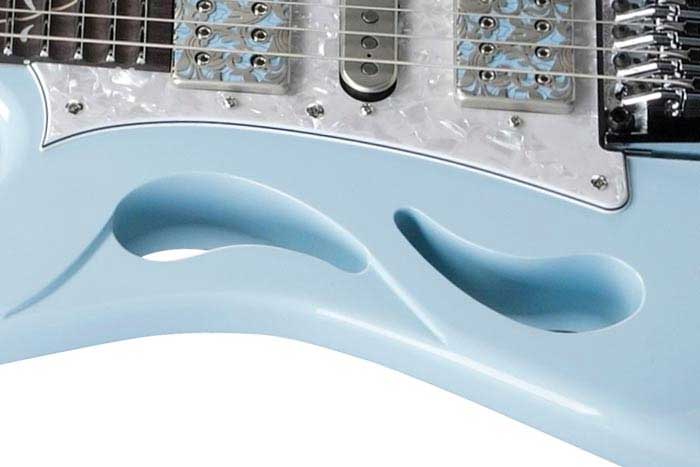

Petal Grip
Exclusively designed for the PIA, the new Petal Grip offers a balanced, contemporary design aesthetic. It’s also meant to symbolize unity, companionship, and interpersonal bonds.

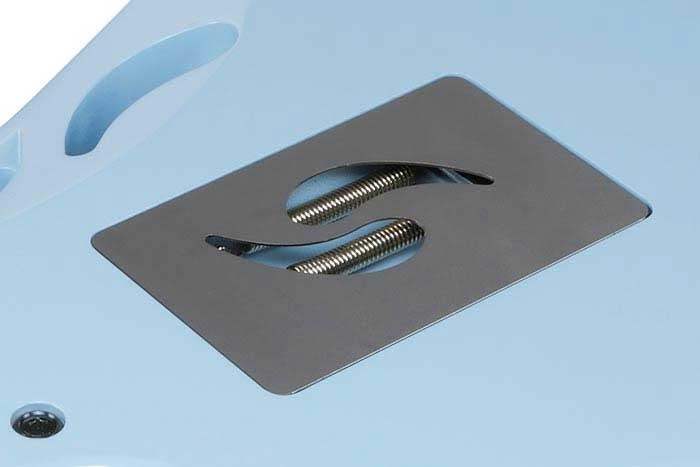

Magnetic Tremolo Cavity Plate
The tremolo cavity plate is held in place magnetically, allowing for quick removal and reinstallation when changing strings or adjusting the tremolo system.
