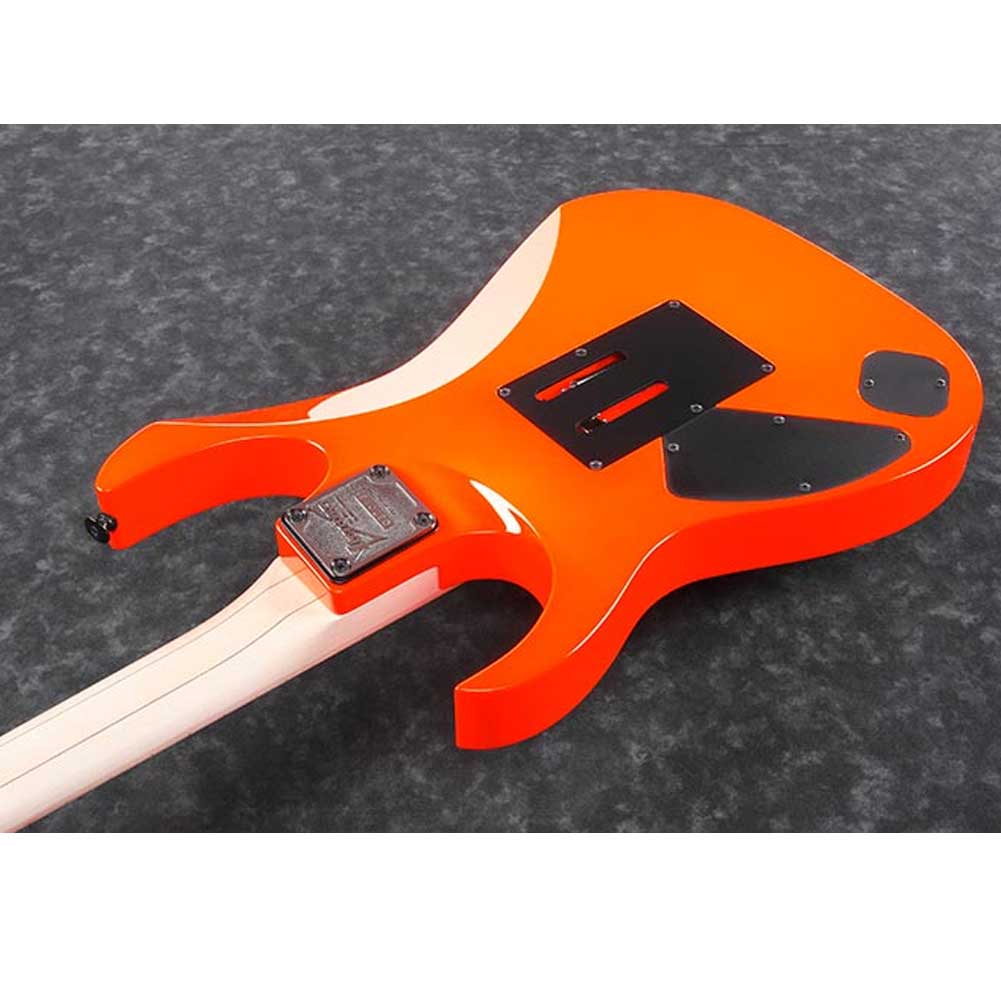

Ibanez RG565 FOR Genesis Collection Prestige Electric Guitar 6 Strings with Gig Bag

SPECS

• neck type?? ?Super Wizard 5pc Maple/Walnut neck
• top/back/body?? ?Basswood body
• fretboard?? ?Maple fretboardMatching color dot inlay
• fret?? ?Jumbo frets
• number of frets?? ?24
• bridge?? ?Edge tremolo bridge
• string space?? ?10.8mm
• neck pickup?? ?Infinity R (H) neck pickupPassive/Ceramic
• bridge pickup?? ?V8 (H) bridge pickupPassive/Alnico
• factory tuning?? ?1E,2B,3G,4D,5A,6E
• strings?? ?D’Addario EXL120
• string gauge?? ?.009/.011/.016/.024/.032/.042
• nut?? ?Locking nut
• hardware color?? ?Black

• Scale :?? ?648mm/25.5″
• a : Width?? ?43mm at NUT
• b : Width?? ?58mm at 24F
• c : Thickness?? ?17mm at 1F
• d : Thickness?? ?19mm at 12F
• Radius :?? ?430mmR

SWITCHING SYSTEM
RG565’s Switching system diagram

CONTROLS
RG565’s control diagram

OTHER FEATURES

Recommended Case MR500C
Recommended Bag IGB724-BK
Gotoh machine heads

Features

Super Wizard 5pc Maple/Walnut neck
The Super Wizard 5pc Maple/Walnut neck provides extra-smooth playing.

Infinity R / V8 pickups
Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity.

Maple fretboard
The Maple fretboard provide crisp, bright highs and strong upper mids.

Edge tremolo bridge
The masterpiece Edge bridge offers exceptional tuning stability, precise intonation adjustment, and playing comfort.
