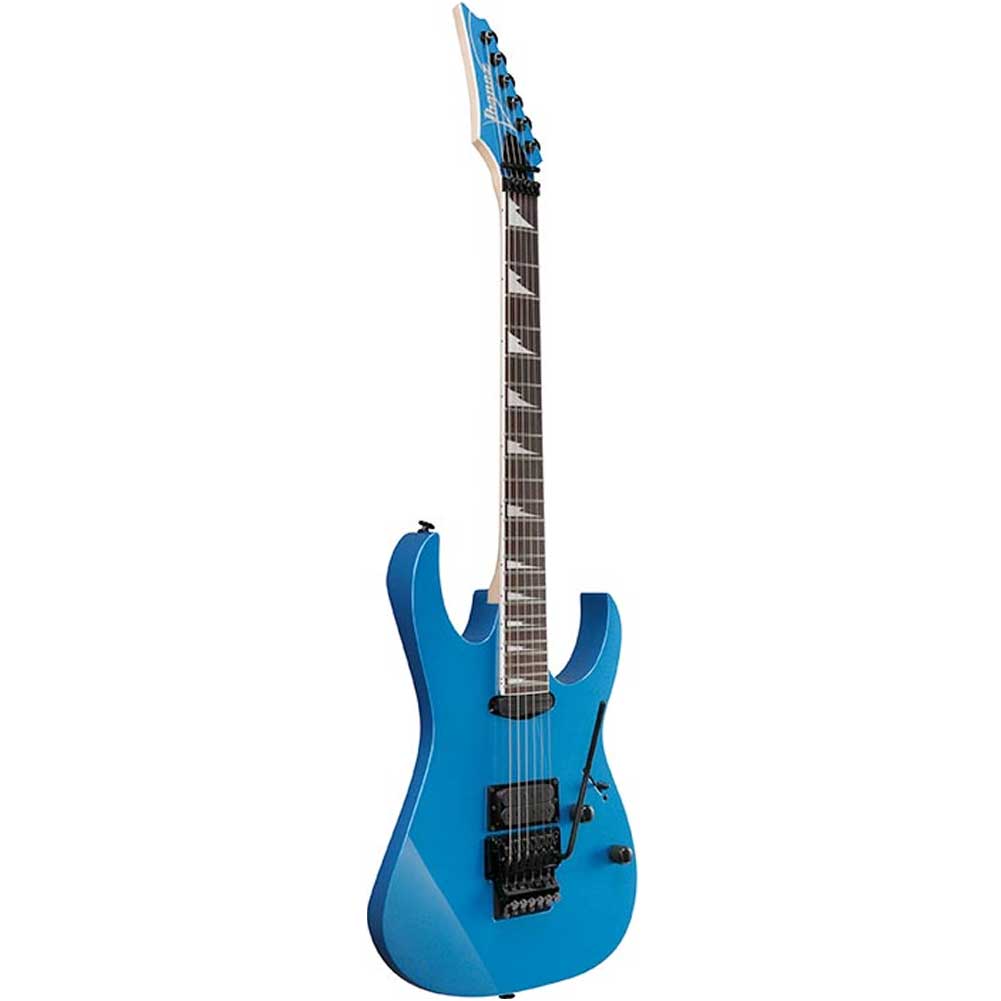

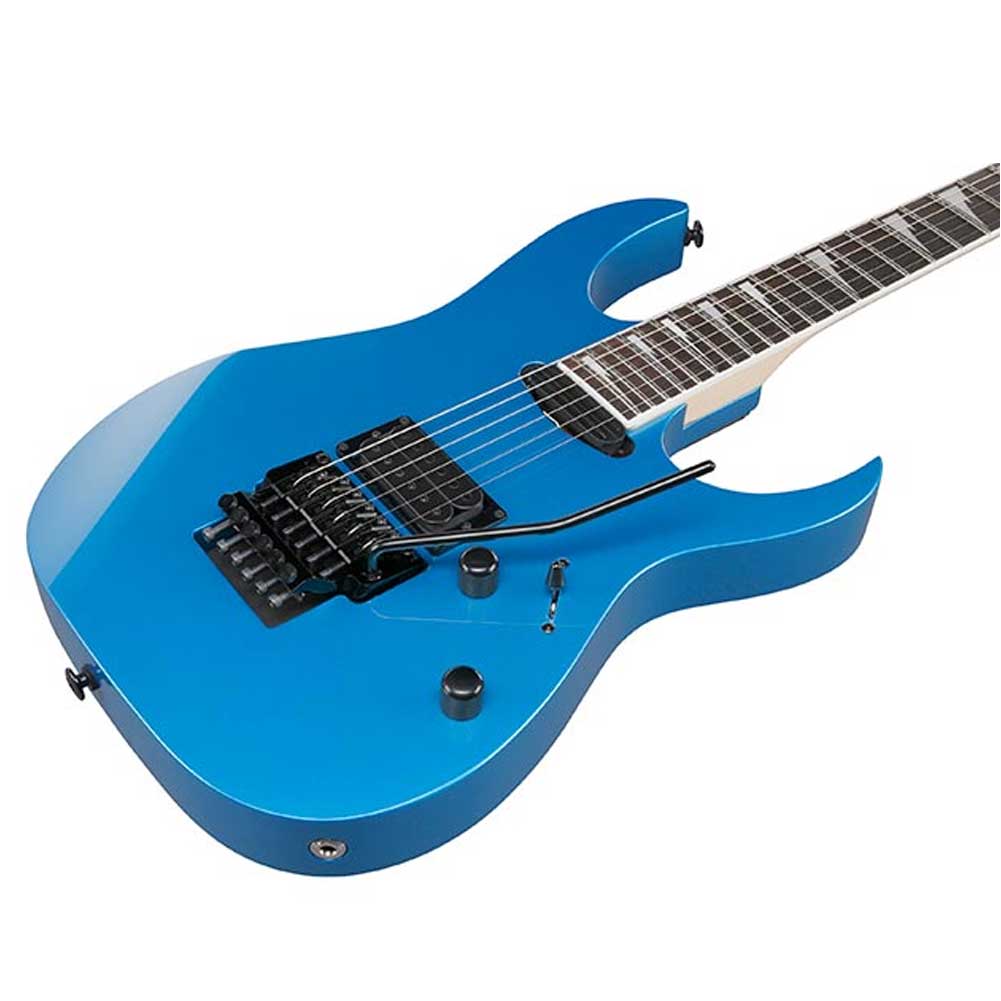

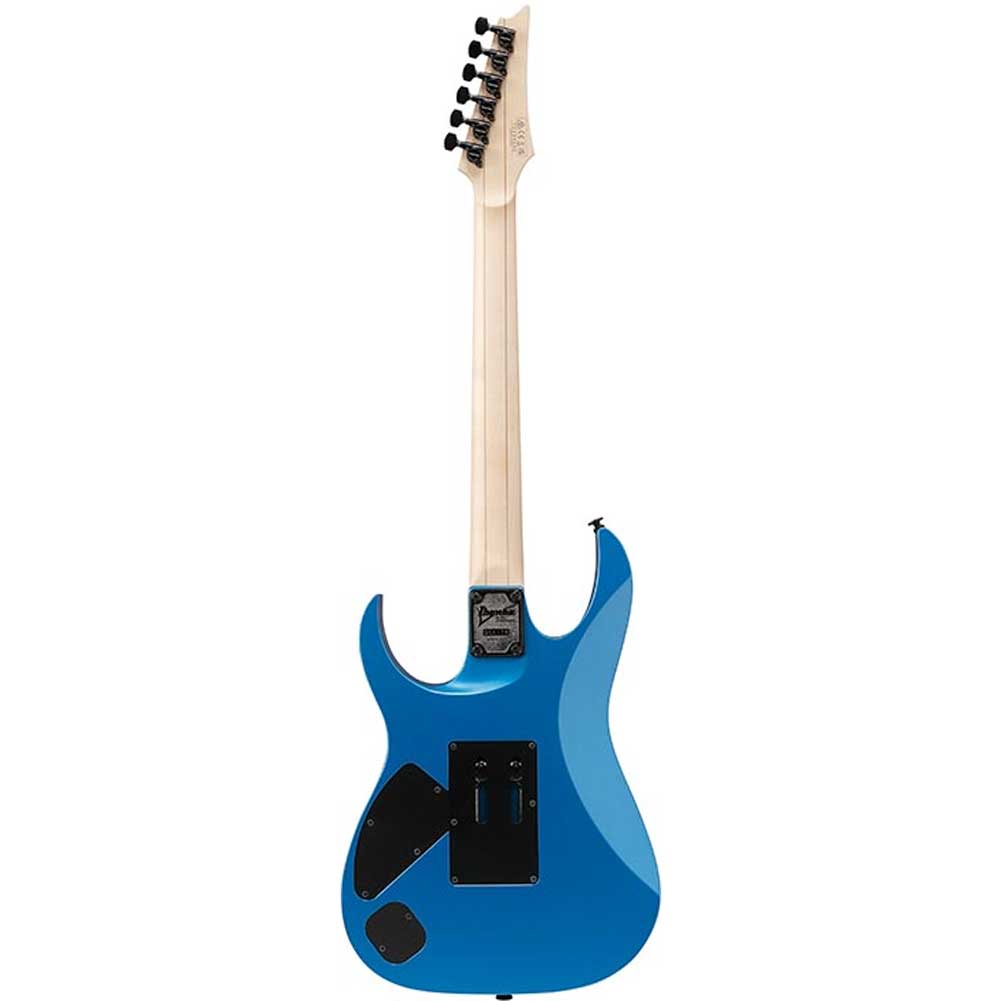

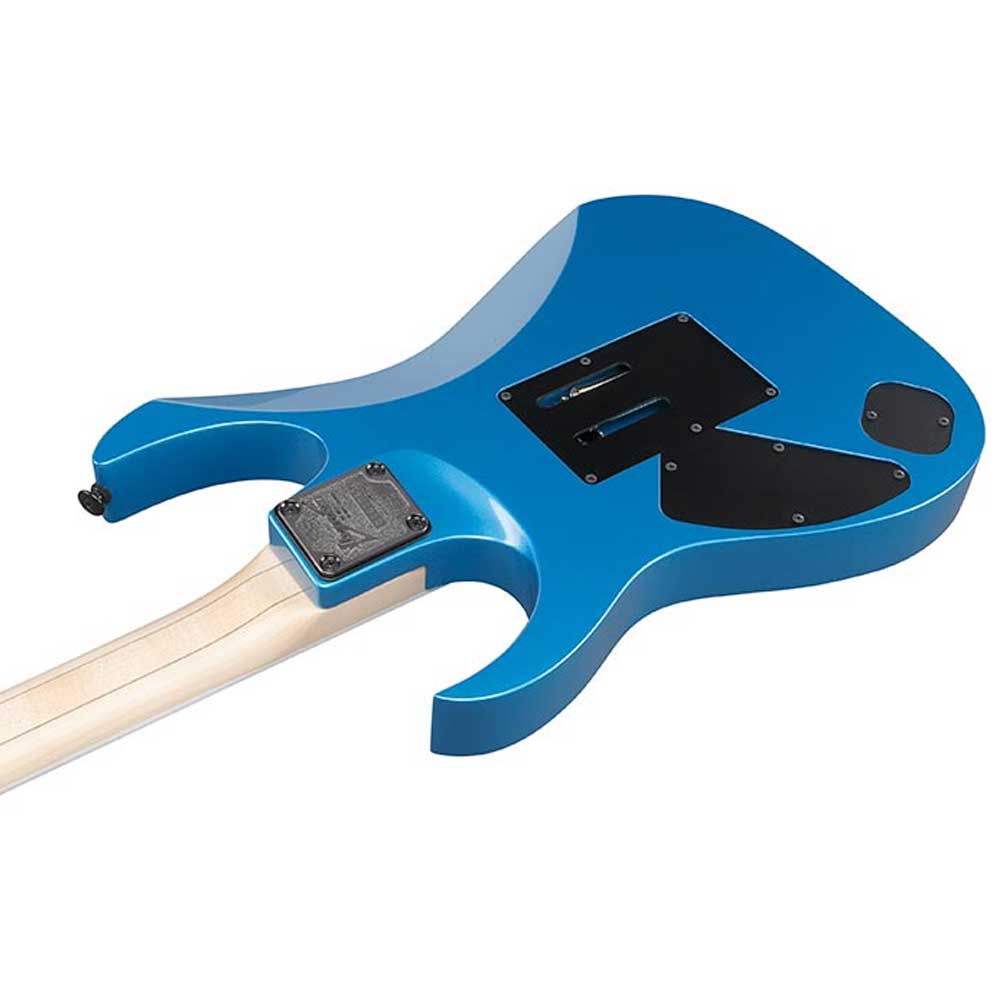

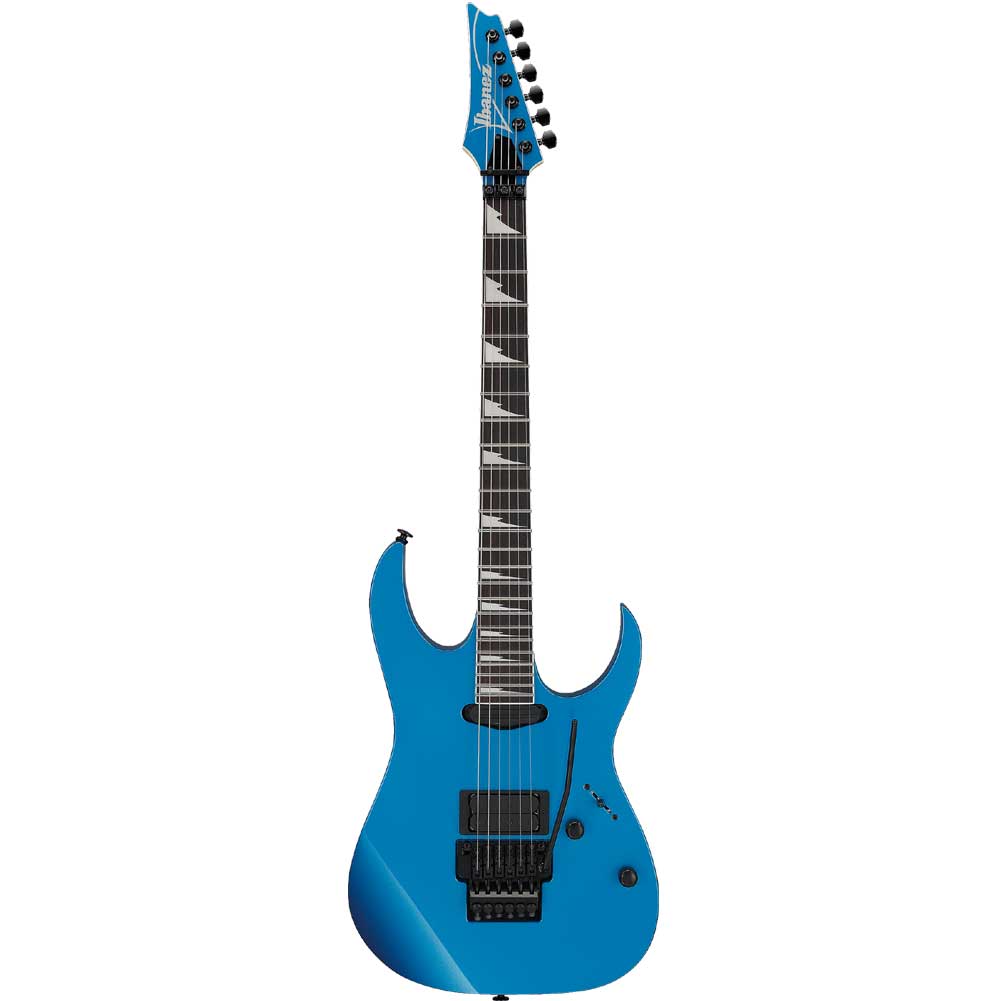

Ibanez RGR565 EB Genesis Collection Prestige Electric Guitar 6 Strings with Gig Bag

Ibanez RGR565 EB Genesis Collection Prestige Electric Guitar 6 Strings with Gig Bag

RG565R Colors:-
DY : Desert Sun Yellow
EB : Electric Blue

SPECS
neck type Super Wizard 5 pc Maple/Walnut neck
top/back/body Basswood body
fretboard Bound Rosewood fretboard White Sharktooth inlay
fret Jumbo frets
number of frets 24
bridge Edge bridge
string space 10.8mm
neck pickup Infinity R (H) neck pickup Passive/Ceramic
bridge pickup V8 (H) bridge pickup Passive/Alnico
factory tuning 1E,2B,3G,4D,5A,6E
strings D’Addario® EXL120
string gauge .009/.011/.016/.024/.032/.042
nut Locking nut
hardware color Black

NECK DIMENSIONS
Scale : 648mm/25.5″
a : Width 43mm at NUT
b : Width 58mm at 24F
c : Thickness 17mm at 1F
d : Thickness 19mm at 12F
Radius : 430mmR

SWITCHING SYSTEM
RG565R’s Switching system diagram

CONTROLS
RG565R’s control diagram

OTHER FEATURES
Recommended Case MR500C
Recommended Bag IGB724-BK
Gotoh® machine heads

Features

Super Wizard 5pc Maple/Walnut neck
The Super Wizard 5pc Maple/Walnut neck provides extra-smooth playing.

Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

Jumbo frets
Jumbo frets contribute to smooth playability, especially for single-note playing.

Basswood body
The Basswood body delivers a natural and flat tone.

Infinity R / V8 pickups
Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity.

Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.

Edge tremolo
The masterpiece Edge bridge offers exceptional tuning stability, precise intonation adjustment, and playing comfort.
