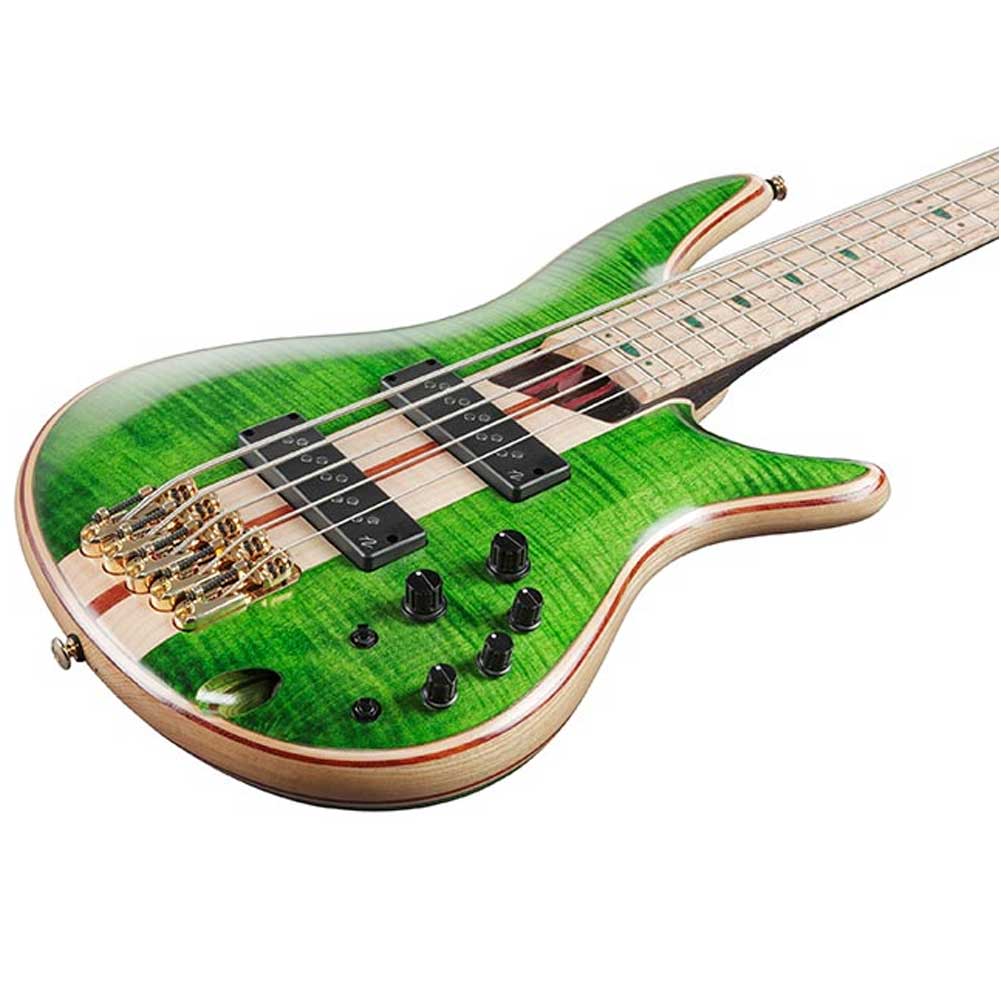

Ibanez SR5FMDX EGL Premium Series 5 String Bass Guitar with Gig Bag

SPECS
neck type Atlas-5 5pc Panga Panga/Purple heart neck w/KTS TITANIUM rods
top/back/body Flamed Maple/Bubinga top Flamed Maple/Bubinga backAsh body

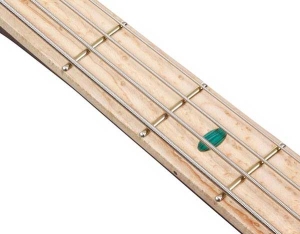

fretboard Birdseye Maple fretboard Green oval inlay
fret Medium frets Premium fret edge treatment
number of frets 24
bridge MR5 S bridge
string space 16.5mm
neck pickup Nordstrand Big Break neck pickup Passive
bridge pickup Nordstrand Big Break bridge pickup Passive
equaliser Ibanez Custom Electronics 3-band EQ w/ EQ bypass switch (passive tone control on treble pot) & 3-way Mid frequency switch
factory tuning 1G,2D,3A,4E,5B
strings D’Addario EXL165 + .130
string gauge .045/.065/.085/.105/.130
nut Graph Tech BLACK TUSQ XL nut
hardware color Gold

NECK DIMENSIONS
Scale : 864mm
a : Width 45mm at NUT
b : Width 68mm at 24F
c : Thickness 19.5mm at 1F
d : Thickness 21.5mm at 12F
Radius : 305mmR

 CONTROLS
SR5FMDX’s control diagram

 FREQUENCY RESPONSE
SR5FMDX’s EQ curve diagram

OTHER FEATURES
Recommended Case MRB500C
Gig bag included
Gotoh machine heads

Atlas 5pc Panga Panga/Purpleheart neck with KTS TITANIUM rods
The Atlas 5pc Panga Panga/Purpleheart neck provides a well-balanced note attack and tone with rich sustain.The neck is constructed with KTS TITANIUM reinforcement rods, increasing its stability and adding sustain.

Premium Fret Edge Treatment
Premium Fret Edge Treatment offer super smooth,comfortable performance.

MR5S bridge
The MR5S bridge has adjustable saddles for variable string spacing by +/- 1.5mm, answering every bassist’s specific string spacing needs.

Ibanez Custom Electronics 3-band EQ w/EQ bypass switch & Mid frequency switch
Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.
Precision tonal control, including a switch to choose passive-only operation. When the EQ bypasses activated, the treble tone control knob becomes the global tone control for the passive circuit.
